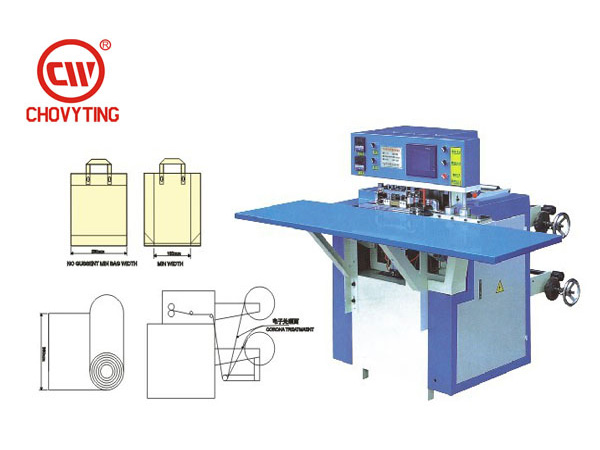

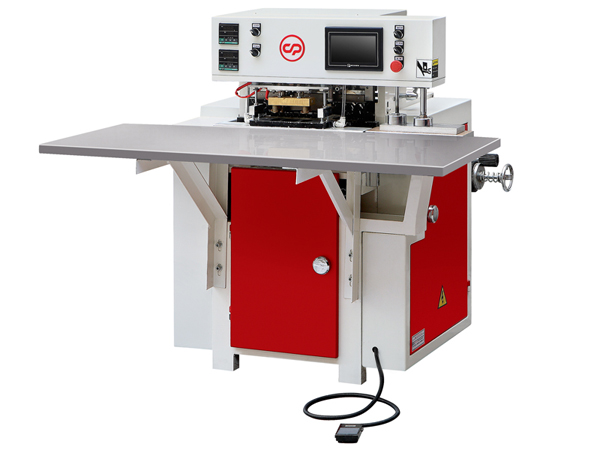

CP-SH Soft Loop Handle Welding Machine

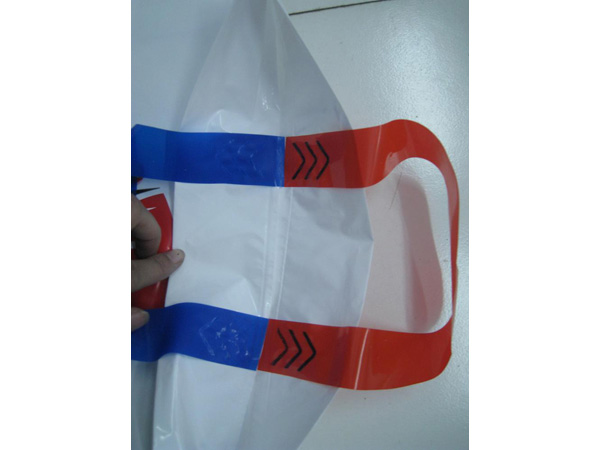

The CP-SH bag soft loop handle welding machine falls into the mechanical type which is semi automatic and is primarily employed for sealing the handle of side or bottom sealing bags.

The side or bottom sealing bags should be manually placed under the sealing knife with a weld handle. Then, the bottom of the motor is pressed with the foot for heat sealing of the handle. Based on such a process, the operation speed of the carrier bag handle sealing machine is not so fast, normally 20 to 30 pieces per minute.

The bag soft loop handle welding machine generally works with the CWRDL side sealing unit and CW-BSC bottom sealing device to manufacture side or bottom sealing soft loop handle bags.

Technical Parameters
Model CP-SH
Suitable Bag Width 200-650mm
Bag Making Speed 27 pcs /min
Bag Film Thickness 0.03-0.2mm
Length of Soft Loop Handle Film 360mm
Power Supply AC220V/AC380V
Total Power 2.5kW
Equipment Weight 500kg
Equipment Dimension 1500×2000×1200mm
Air Compression 6HP
