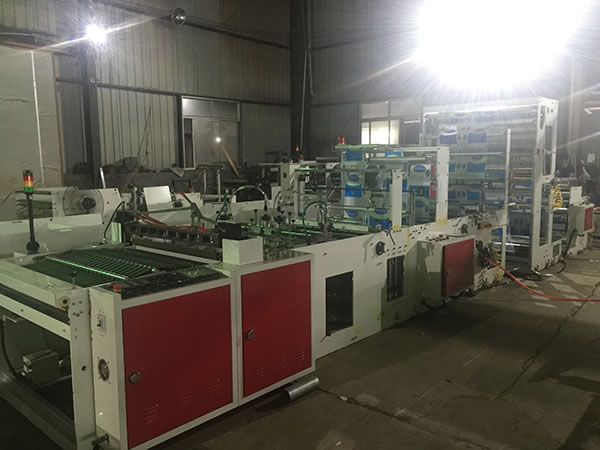

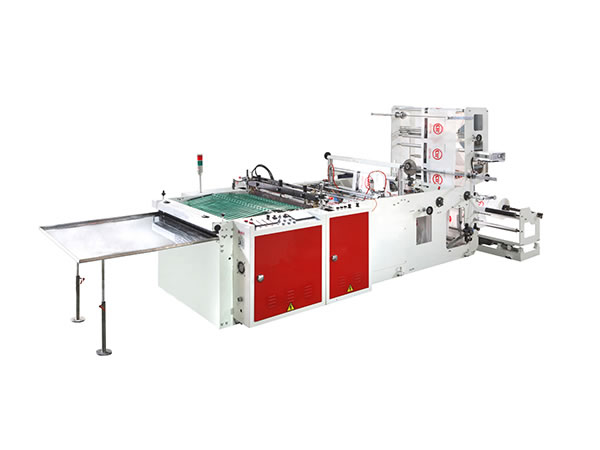

CW-1000SW Fully Automatic Sine Wave Cutter Bag Making Machine
Features of the sine wave cutter bag making machine
1. CHOVYTING is the only one manufacturer for sine wave bag machine in Asia area.
2. Autonomic controlled by PLC and touch screen for bag width and sine wave
3. With handle punching device
Optional equipment
1. Patch film gluing attachment
2. Gusseting tower

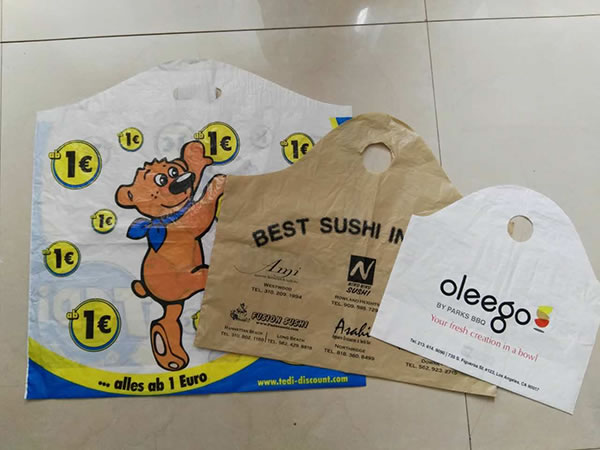

Bag samples :
Bottom insert

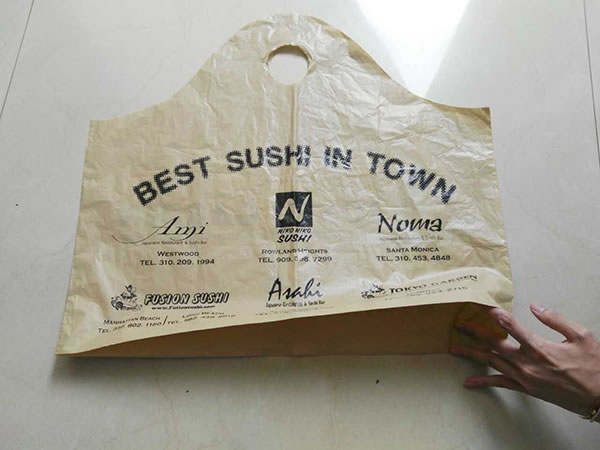

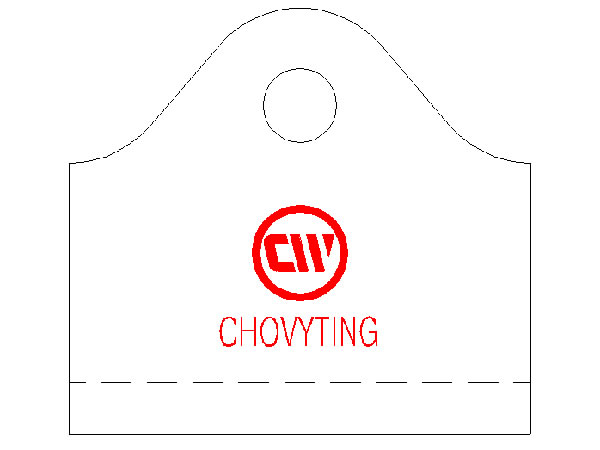

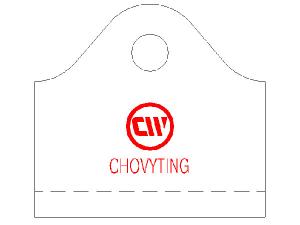

Sine wave bag

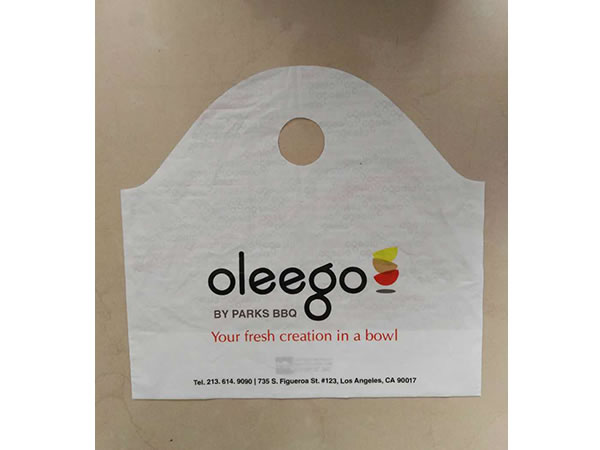

Sine wave bag
Machine details :

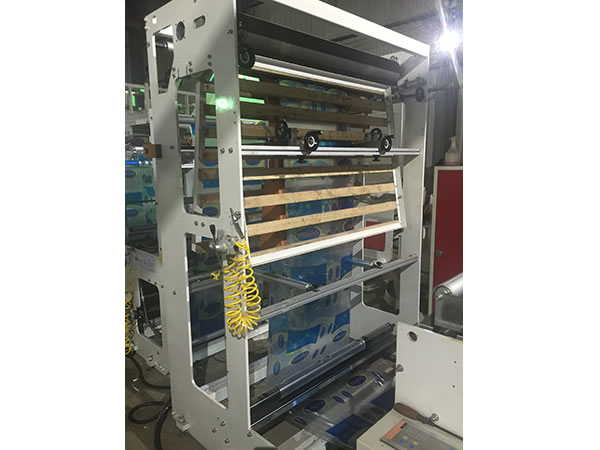

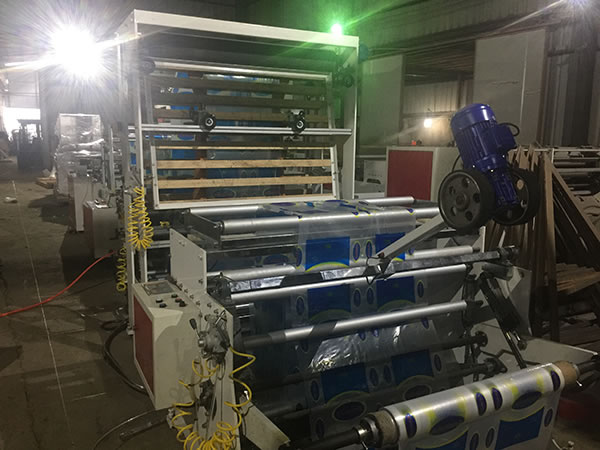

Unwinders
Gusseting tower (optional)

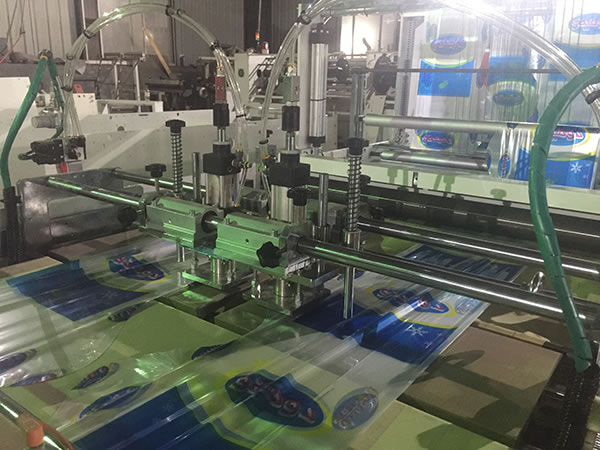

Handle hole punch

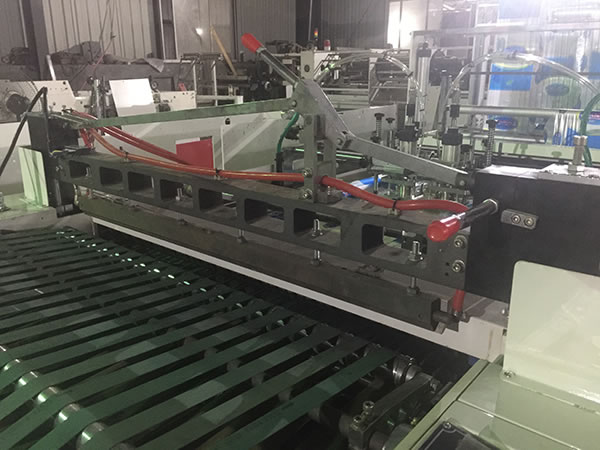

Side sealing knife

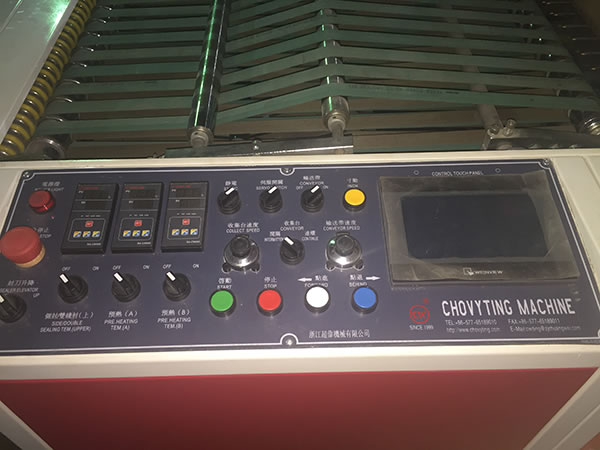

Control panel
Technical parameter of the sine wave cutter bag making machine
Model
CW-1000SW
Length of bag making
250-450mm
Width of bag making
100-700mm
Unwinder width
1000mm
Unwinder max. diameter
900mm
Speed of bag making
30-100 pcs/min (side seal bag)
30-60 pcs/min (sine wave bag)
Bottom gusset
30-150mm
Total power
12.2kw
Weight of machine
3500kg
Overall dimension
7800X2500X2050mm
Air compressor
6HP
