CWZD-400-ZF High Speed Bag Making Machine Specially Used for Center and Bottom Sealing Bag (Center Seal Bag and Four Side Seal Bag Making Machine)
Feature
1. It is able to change the bag making type easily from center sealing to four side sealing bag for ease of operation.
2. Double servo motor, double inverter driving, the film will not shake even when the machine runs at a high speed.
3. Continuous feeding without stop makes the machine with higher speed, and easier to form the bag.
4. Bridge type heavy pressing heat sealing structure, the sealing has a high intensity.
Options
1. Handle puncher
2. Butterfly type puncher
3. Single film folded stand up zipper application

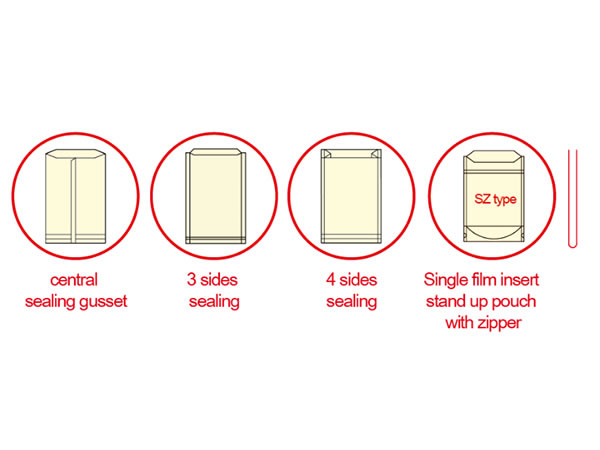

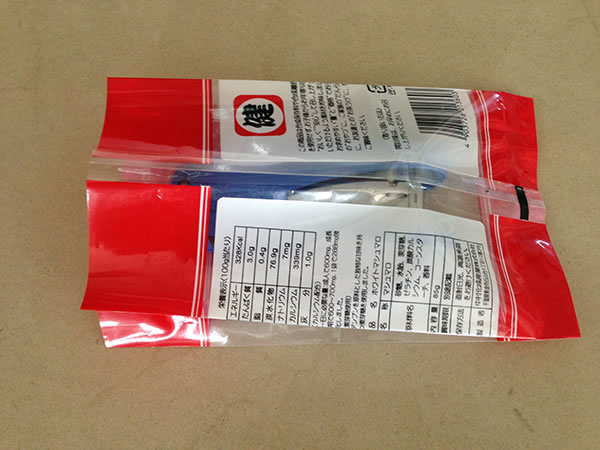

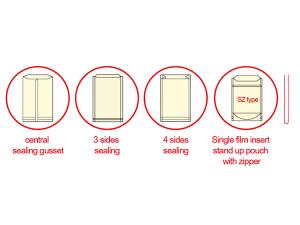

Center seal bag with side gusset
Four side seal bag

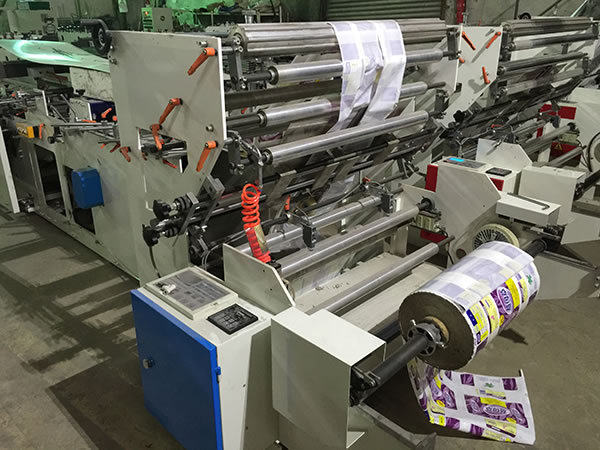

Unwinder

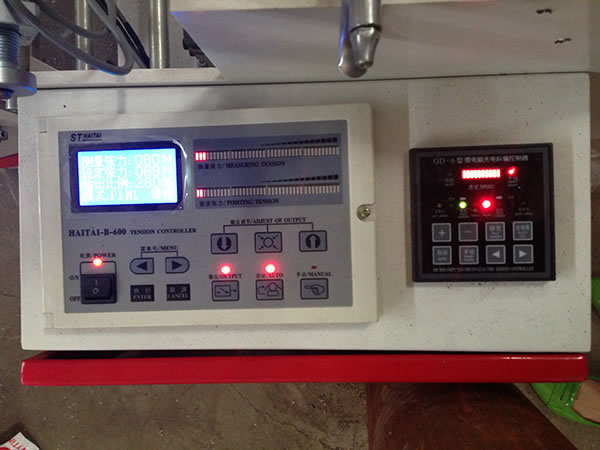

Unwinder auto tension controller

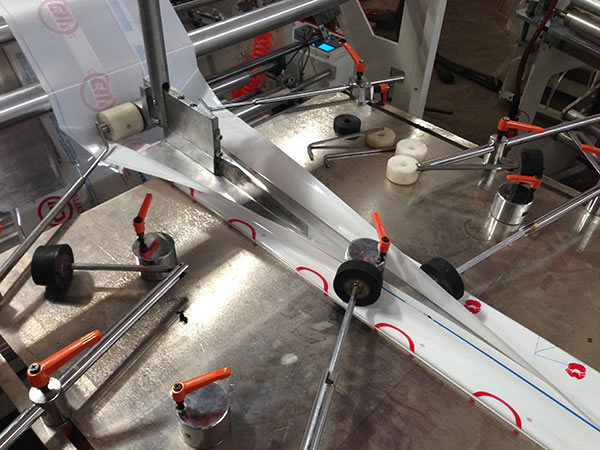

Center folding section

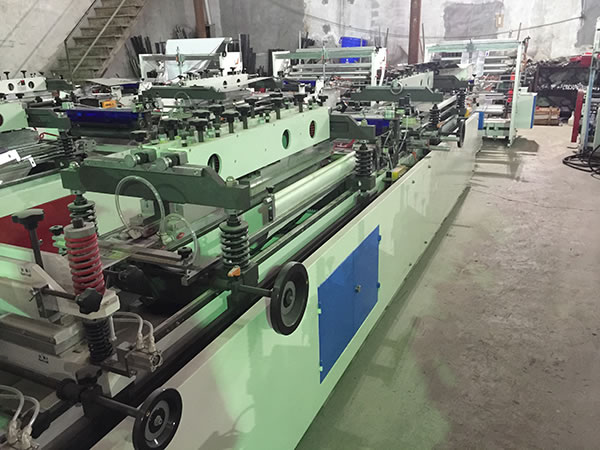

Machine rear section

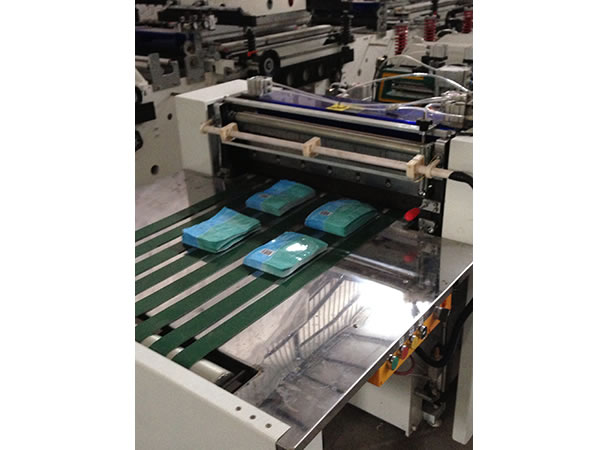

Automatic conveyor table

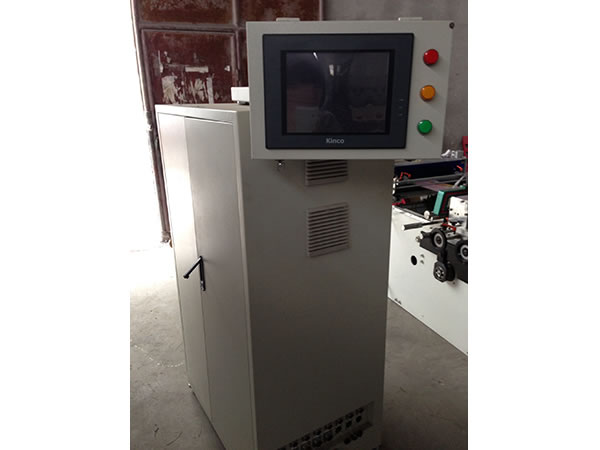

Control panel and cabinet
Technical parameter
Model
CWZD-400-ZF
Unwinding width
800mm
Length of bag making
70-380mm×6 (N≤6)
Width of bag making
75-380mm
Side gusset width
15-80mm
Speed of bag making
40-150pcs /min
Total power
20KW
Machine weight
3200kg
Machine dimension
10000X1600X1700mm
