CP-1400FD, CP-1600FD Film Rewinding Machine
Inquiry Form

CP-1400FD, CP-1600FD Film Rewinding Machine

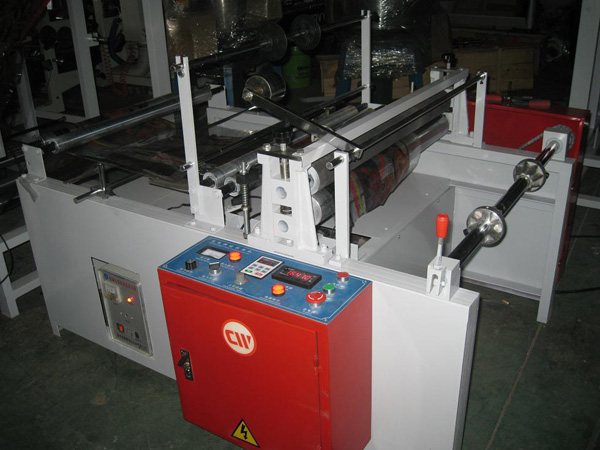

The plastic film rewinding machine is a kind of auxiliary equipment for bag making machines. It mainly comes with the triangle folding device as well as rewinding device. The former is primarily used for folding a single film, and is suitable for all types of side sealing bag making units. The rewinding unit comes with the ultrasonic and EPC system. Together with the CW-RDL side sealing bag maker, this plastic film rewinding machine is a good solution to OPP header card bag which can pack stationery, socks, clothes, etc.

Technical Parameters
Model CP-1400FD CP-1600FD
Width of Jumbo Roll 1200mm 1600mm
Diameter of Jumbo Roll Φ 650mm Φ 650mm
Set Linear Speed 90m/min 90m/min
Total Power 1.5kW 2.5kW
Equipment Weight 850kg 1050kg
Equipment Dimension 2400×1500 × 1500mm 2800×1900×1700mm

Related Names
Triangle Folding Machine | Plastic Film Folding Machine
