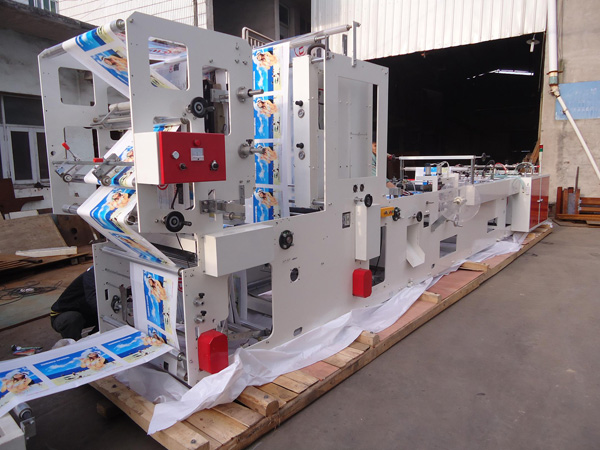

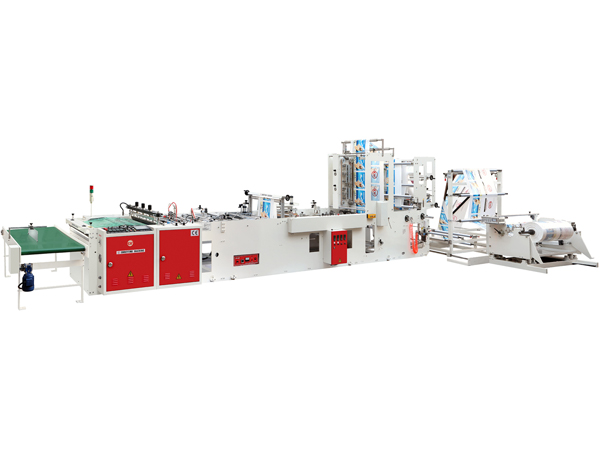

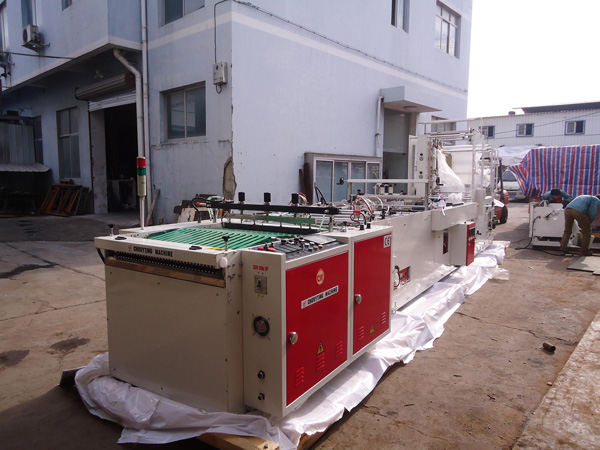

CW-800SBD ZP Zipper Bag Making Machine
This range of zipper bag making machine is multifunctional, and it is most frequently utilized for making diaper bags. It is especially designed with a plastic zipper device, and a puncher for making baby diaper bags with 2 holes on the top. This product has been very popular in Columbia, Venezuela as well as other countries. It can be optionally fitted with different accessories to make various kinds of bags, such as top folded punching handbag, chicken bag, bread bag, courier bag, OPP header card bag, etc.
Structure
1. The zipper bag making machine is constructed from 12mm thick steel plate.
2. The materials are fed with the 3kW Japanese Yaskawa servo motor.
3. The product makes use of touch screen display from Taiwan.
4. Its driver is controlled by PLC from Japanese Panasonic.
5. The frequency conversion of the mainframe is under the control of 1.5kW Japanese Yaskawa servo motor.
6. The photocell for tracking printing marks is introduced from German SICK.
| MODEL | ||
| Length of bag making | 150-700mm | 150-900mm |
| Width of bag making | 80-600mm | 80-600mm |
| Line speed | 50m/min | 50m/min |
| Speed of bag making | 120pcs/min | 110pcs/min |
| Total power | 12.8KW | 14.3KW |
| Weight of machine | 3070KG | 3230 KG |
| Dimension of machine | 8000*2920*1970mm | 8000*2990*1970mm |
