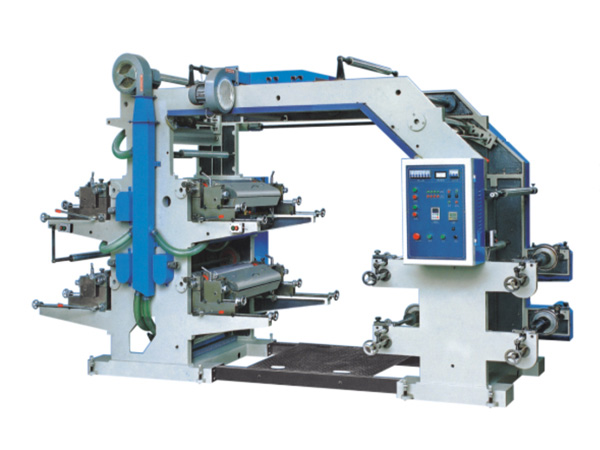

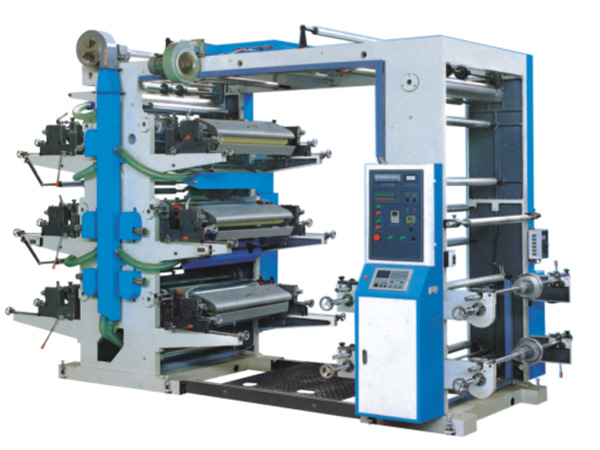

Standard Flexographic Printer
The standard flexographic printer is fitted with the meter counter for calculation of total printing length. If the total length reaches the preset value or the coiled packing film is broken, the flexo printing machine will automatically stop working. The reliable driving system is designed with high speed rotation and can realize automatic circuit breaking when the printing unit stops.

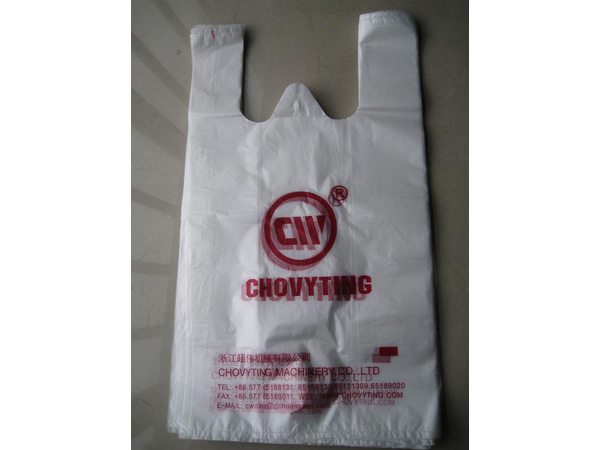

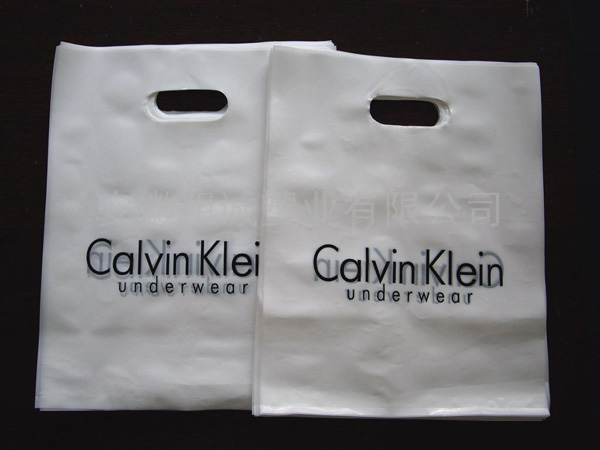

The printing plate cylinder of the printing equipment allows for manual lifting and lowering, as well as offers automatic stirring of the printing ink after being lifted. The flexographic printer can be optionally equipped with EPC system plus magnetic powder device for winding and unwinding tension control. It is suitable for various reel shaped packing materials, such as BOPP, PE, paper, etc., and is a preferred choice for food paper packaging, supermarket handbag, T-shirt bag, cloth bag, etc.
Technical Specifications| Model | |||
| Max. Printing Width | 800 | 800 | 800 |
| Max. Width of Raw Material | 850mm | 850mm | 850mm |
| Repeat Printing Length | 200-960mm | 200-960mm | 200-960mm |
| Printing Speed | 70 m /min | 70 m /min | 70 m /min |
| Printing Type | 2＋0, 1＋1 | 4＋0, 1＋3, 2＋2 | 6＋0,1＋5, 3＋ 3 |
| Plate Thickness | 2.38mm | 2.38mm | 2.38mm |
| Weight | 4000kg | 4700kg | 5800kg |
| Overall Dimension (L×W×H)mm |
2300×1800×2200mm | 4200×1800×2400mm | 4200×1800×2800mm |
