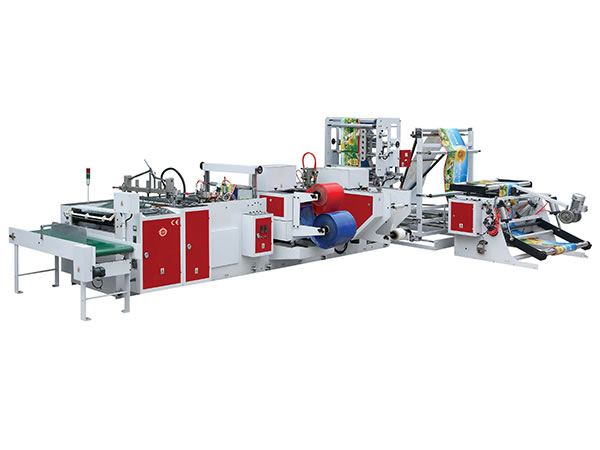

Brief introduction

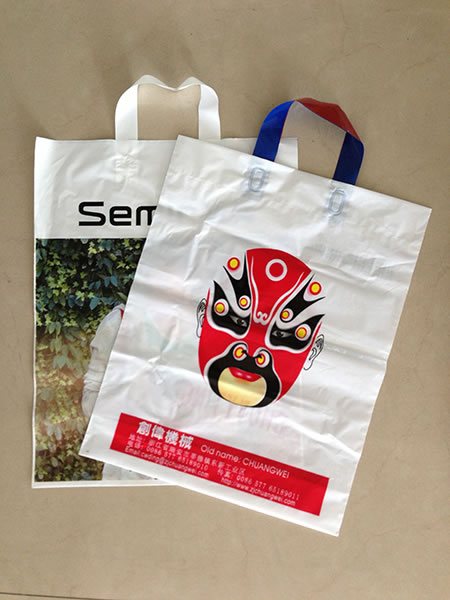

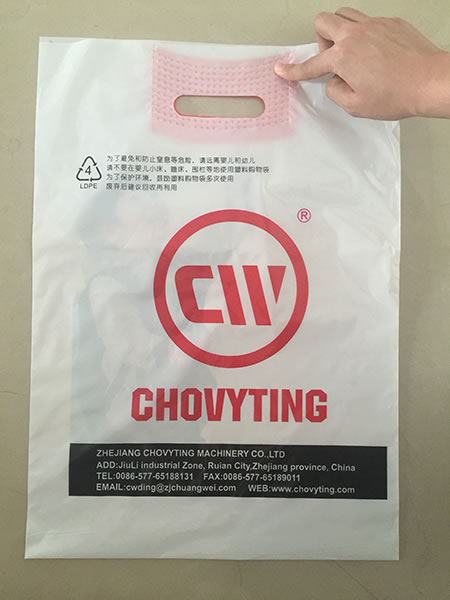

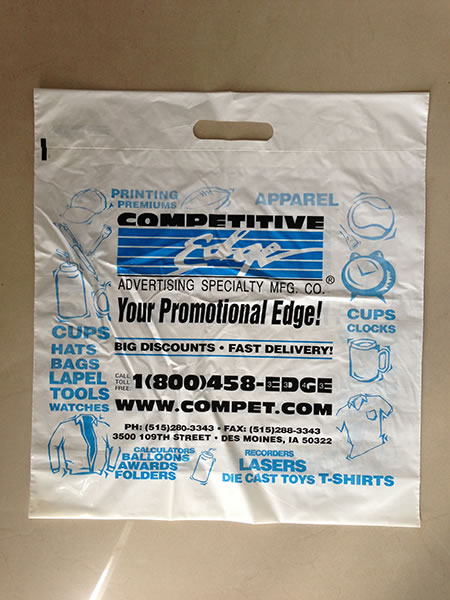

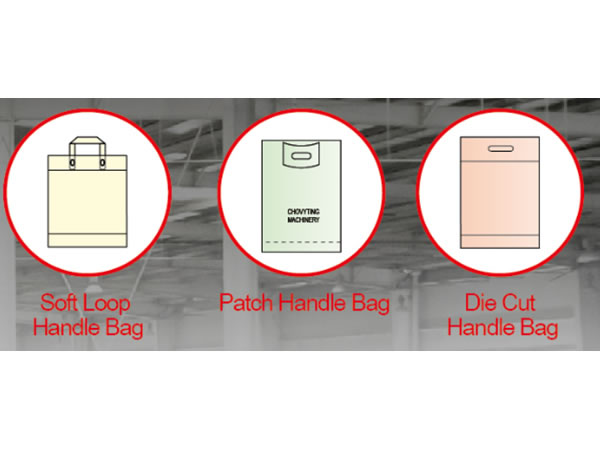

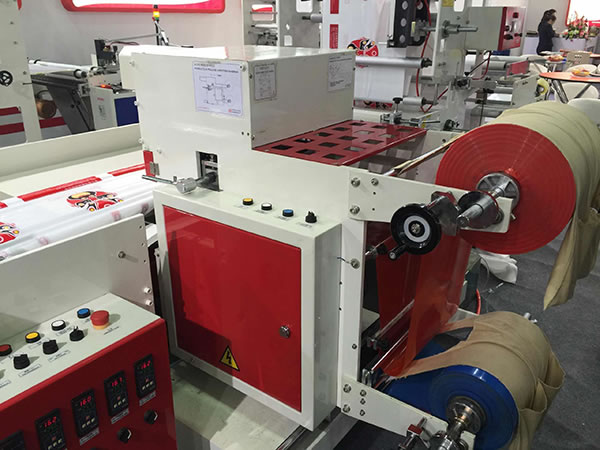

This machine is used for making soft loop handle bag, patch handle bag and D-cut handle bag at a high-speed, stable working performance.
Features of the handle bag making machine
1. The design of soft loop handle and patch handle in the same side, fast exchange the type of bag
2. Soft loop handle device with 3 pcs servo motor drive (Patent)
3. The rotary device of patch handle is driven by servo motor. (Patent)
4. Top folding continuous sealing design, the sealing length is not limited (Patent)

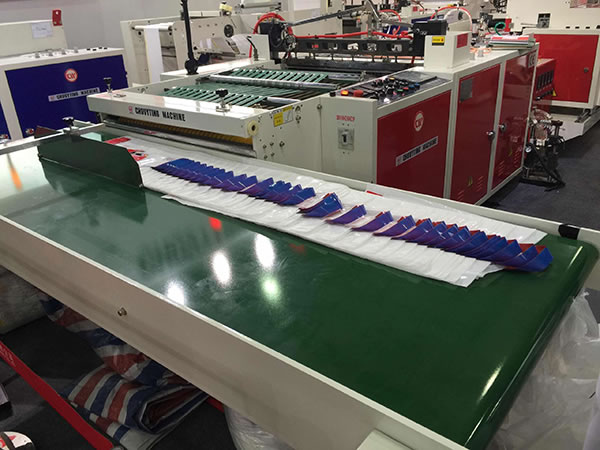

5. The new design of bag stack and speed down conveyor system. (Patent)
Technical parameter of the handle bag making machine
Type
CW-800SDP
Length of bag making (height of bag)
250-750mm
Width of bag making
250-600mm
Speed of bag making
soft loop handle bag
100pcs/min
patch handle bag
100pcs/min
die cut bag
120pcs/min
Top folding
50-75mm
Bottom gusset
20-60mm
Total power
18KW
Machine dimension
10200X2200X1950mm
Machine weight
3600kg
Air compressor
6HP
