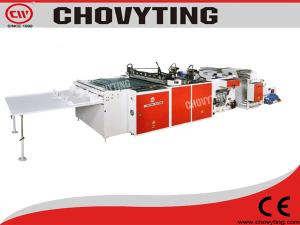

CW-800SBD, CW-1000SBD Side Weld Bag, Bottom Weld Bag Making Machine

Brief introduction
This product is a multi-function bag making machine. It is designed for fully automatic production and ease of operation.

Feature
1. Heavy-duty frame design, less machine vibration under high-speed running
2. Special sealing blade design, exchange quickly and easily
3. Feeding motor automatic control, trouble-free operation.

Option
1) Single sheet folding unit
2) Top folding continuously sealing device
3) Jumbo roll automatic lifting device
4) Auto collection device
5) Chicken bag puncher device
6) Sealing device (for producing DHL bag)
7) Perforation line device
8) OPP header bag (with pearlized film)
9) Adhesive tape adding device

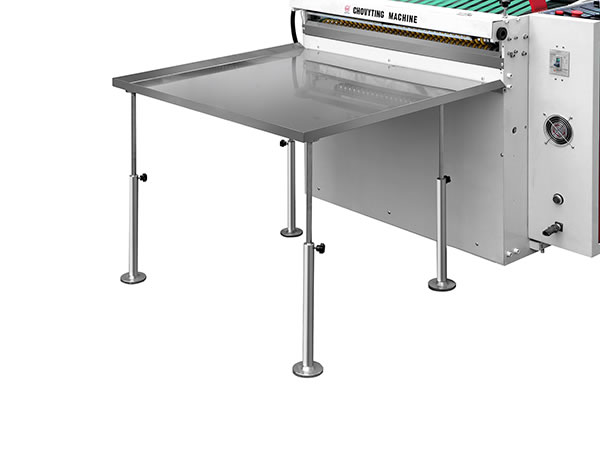

  • Collection table
Technical Parameters
Type CW-800SBD CW-1000SBD

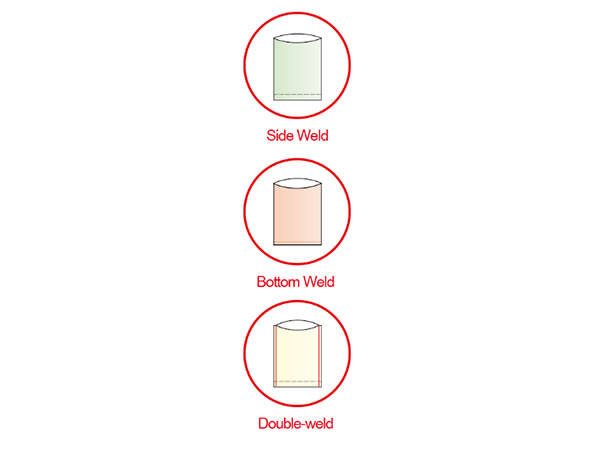

Bag size Side seal Double seal Bottom seal Side seal Double seal Bottom seal
Bag height 750mm 750mm 900mm 950mm 950mm 900mm
Bag width 900mm 900mm 700mm 900mm 900mm 900mm
Speed of bag making Side seal bag 150pcs/min side seal bag 140pcs/min
Bottom seal bag 140pcs/min bottom seal bag 130pcs/min
Double seal bag 120pcs/min double seal bag 110pcs/min
OPP bag 150pcs/min OPP bag 150pcs/min
Total power 8KW 8.5KW
Machine weight 1300kg 1470kg
Machine dimension 5000X1550X1870mm 5000X1750X1870mm
Air compressor 5HP 5HP
