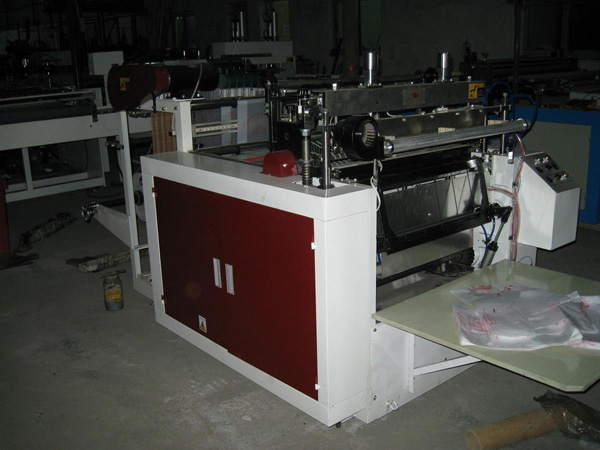

CP-400HSC/2, CP-300HSC/2 Plastic Shopping Bag Making Machine

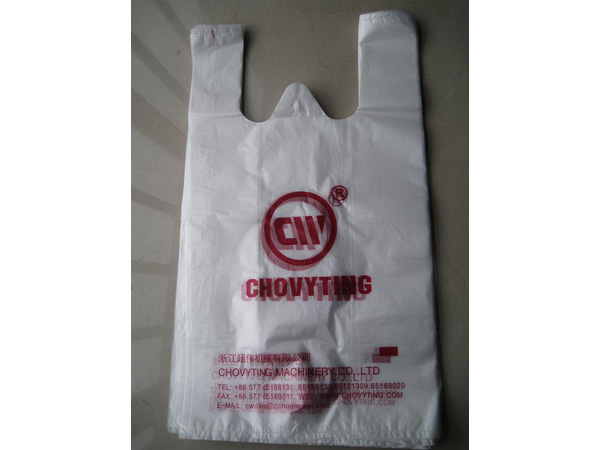

This series plastic shopping bag making machine comes with a heat sealing and heat cutting design, as well as is primarily employed for making two lines of vest carrier bags. Dissimilar to the CW-500HSC model, this product uses double servo motors and dual photocell tracking systems to make two lines of printed or unprinted plastic carrier bags.

The plastic carrier bag making equipment is provided without the automatic punching device. As a result, after the bag is made, it should be equipped with the CWX626-8T mechanical handle punching device to add the handle to the finished plastic shopping bags. The speed is relatively slow by use of the semi auto puncher. This product is a preferred choice for the customer who starts to manufacture the plastic bag making unit with a small amount of investment at the first time.

Features
1. All the operation parameters are presented on a Taiwan touch screen with an automatic design.
2. The plastic shopping bag making machine chooses the single chip microcomputer for regulating the driving mechanism of the whole product.
3. It is configured with a dual digital display intelligent temperature controller and all the heating operations are managed by the solid relay.
4. The product employs a 1.5kW inverter purchased from Japanese Yaskawa.
5. The plastic grocery bag making system uses the DC motor for film feeding.

Technical Parameters
Model CP-400HSC/2 CP-300HSC/2
Bag Making Length 800mm × 2 800 mm×2
Bag Making Width 400 mm×2lines 300mm×2
Thickness of Film 0.01-0.05mm 0.01-0.05mm
Bag Making Speed 30-130pcs/min 30-130pcs/min
Total Power 5.5kW 5.5kW
Equipment Weight 950kg 700kg
Equipment Dimension (L×W×H) 3200×1550×1250mm 3000×1200×1300

Note: As we have been consistently improving the existing equipment and developing new functions, the technical parameters, performance characteristics as well as appearance may be modified without further notice.
