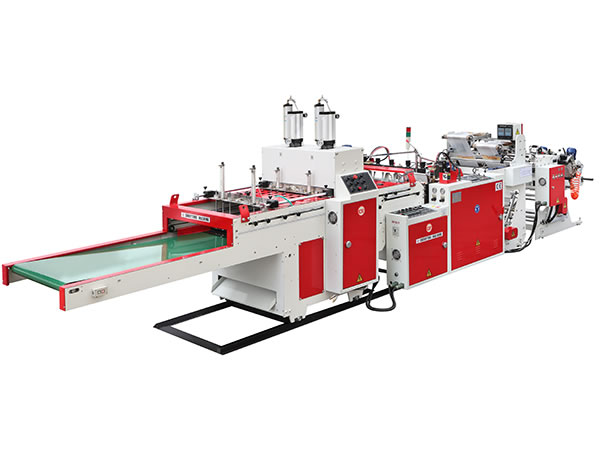

CW-300V2/ CW-400V2 Vest Carrier Bag Making Machine
CW-300V2/ CW-400V2 Vest Carrier Bag Making Machine

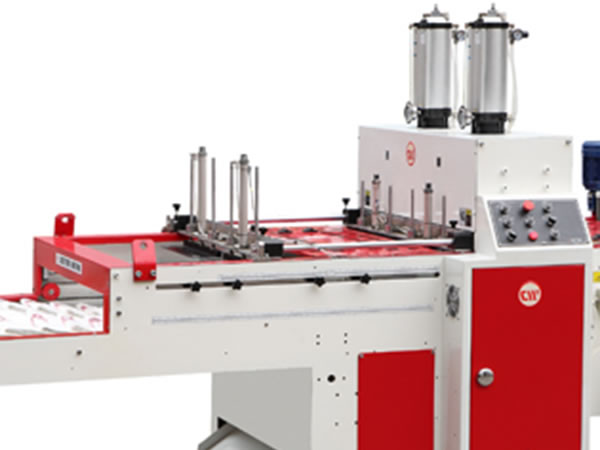

Fully Automatic High Speed T-Shirt Bag Making Machine
CW-300V3 High speed t-shirt bag making machine
CW-400V2 High speed t-shirt bag making machine
CW-500V High speed t-shirt bag making machine
400V2 300V3 500V T-shirt bag

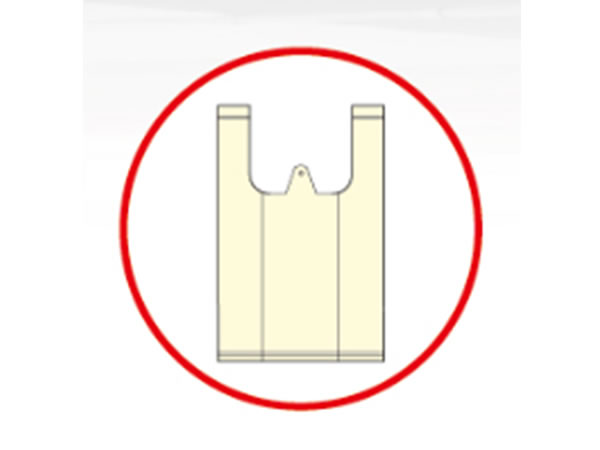

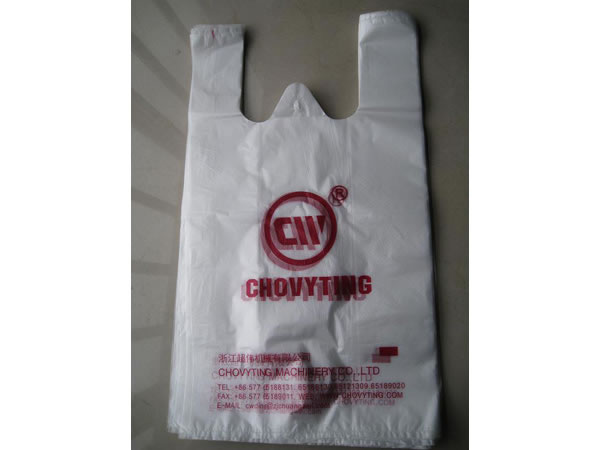

Bag sample
Hot sealing/cutting type (for strong bottom welding)
Material: HDPE, LDPE, Recycled material, CaCO3 added (to save material cost)
Tube film with or without gusset on both sides can be processed by this t-shirt bag making machine.
Application: printed or non- printed film
With one photocell for one line printed t-shirt bag
Features

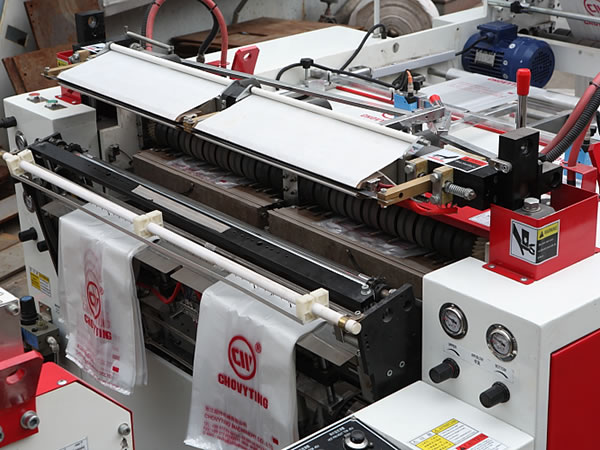

With turnover sealing knife system, easy to clean

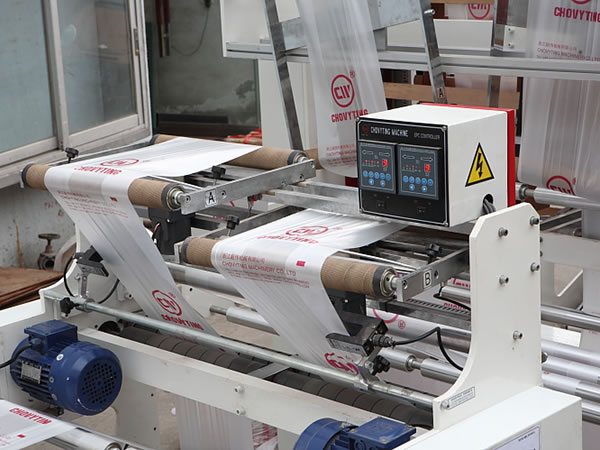

With EPC control system for each lane
With automatic tension control unwinder
With inline punching units

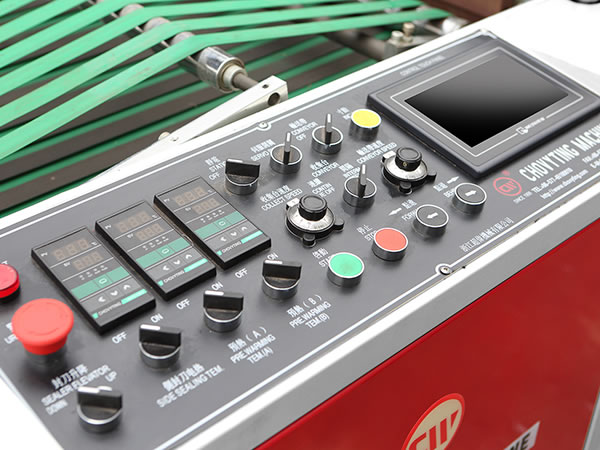

With PLC control and touch screen, servo motor drive
Options

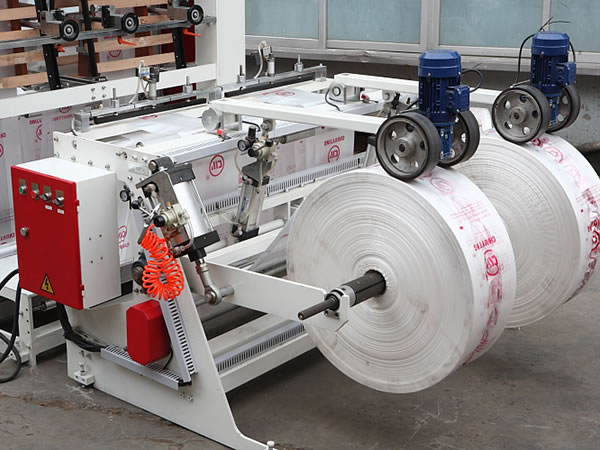

Big jumbo roll + hot slitting device

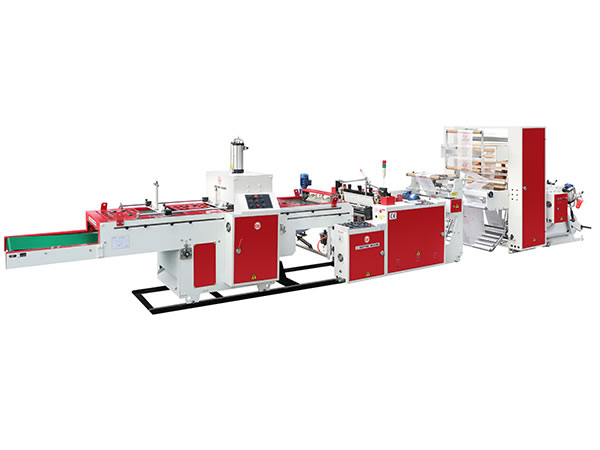

Gusseting tower
Technical parameter
Double Lanes
3 Lanes
Single Lane
Model
CW-300V2
CW-400V2
CW-300V3
500V
Length of bag making
370-700MM
370-700MM
370-700MM
370-700MM
Width of bag making
300mm/each lane x 2lanes
400mm/each lane x 2lanes
300MM
500MM
Speed of bag making
250PCS/MIN x 2 lanes
220PCS/MIN
220PCS/MIN
Line speed
125M/MIN
110M/MIN
100M/MIN
Photocell
2pcs (one for each lane)
1pc
1pc
Servo motor
2pcs (one for each lane)
1pc
1pc
Total power
17.5KW
18.5KW
19KW
9.8KW
Weight of machine
2800KG
3100KG
3940KG
2940KG
Overall dimension
8000X1650X1800MM
8000X1850X1800MM
8000X2050X1800MM
8000X1350X1800MM
Air compressor
6HP
6HP
6HP
6HP
Options

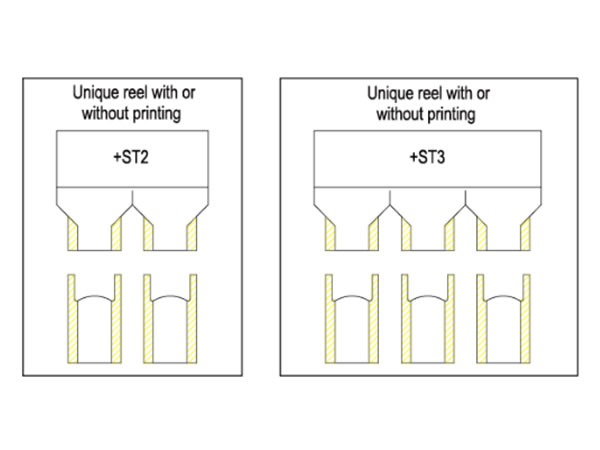

1. Big jumbo roll unwinder + hot slitting device (for 2 lanes)
1. Big jumbo roll unwinder + hot slitting device (for 3 lanes)
Gusseting tower

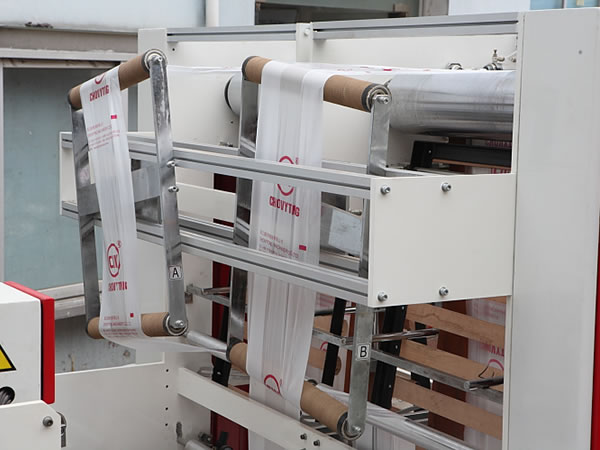

2. Gusseting tower for 2 lane
2. Gusseting tower for 3 lane
