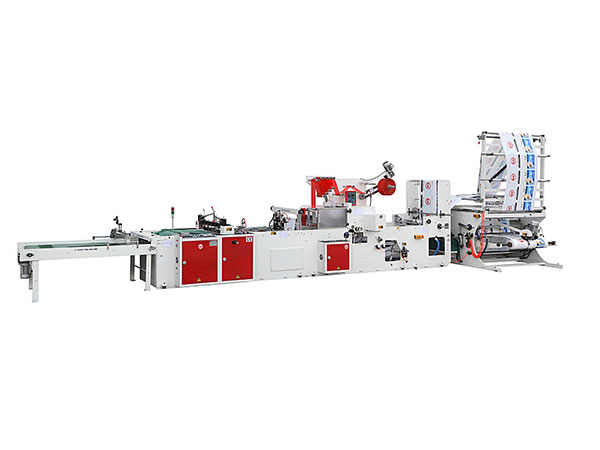

CW-800NJT Patch Handle Carrier Bag Making Machine

Features
1. From gluing, slitting, cutting to sticking, it accomplishes with high speed automatically and in one run. (Patent)
2. Special pattern preheat knife for enhanced sealing hardness

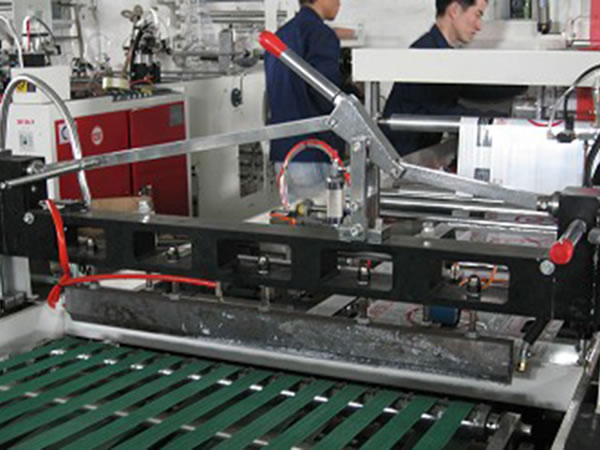

3. Turnover heavy-duty sealing knife seat, easy to clean.
4. Newly designed side sealing knife
5. Chovyting is the only one manufacturer in china makes this machine

Optional equipment
Wicket type collect device

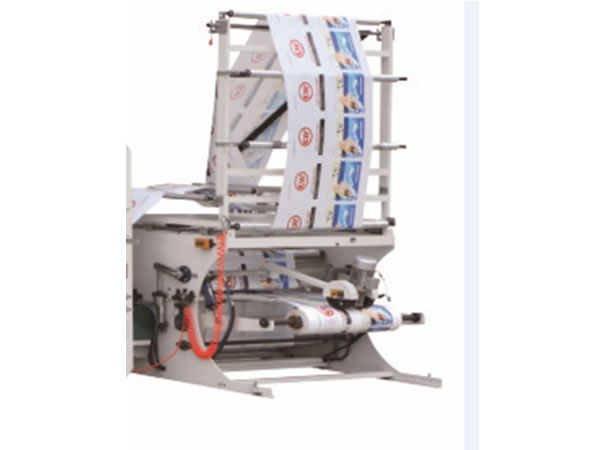

  • Unwinder with folding triangle

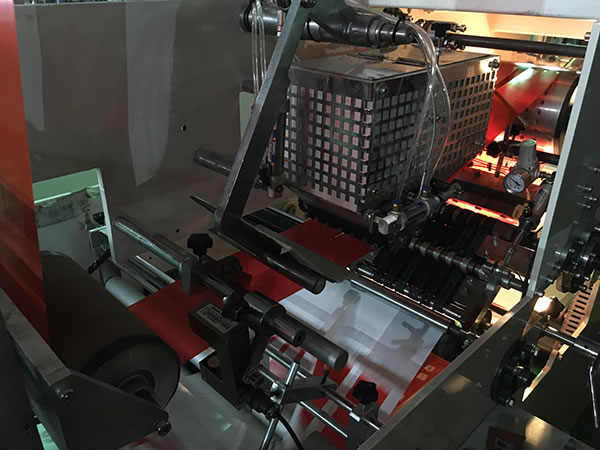

  • Glue pasting device

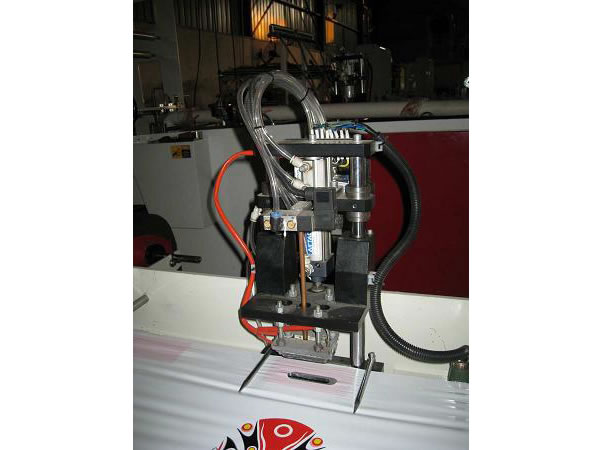

  • Punch
  • Turnover sealing knife

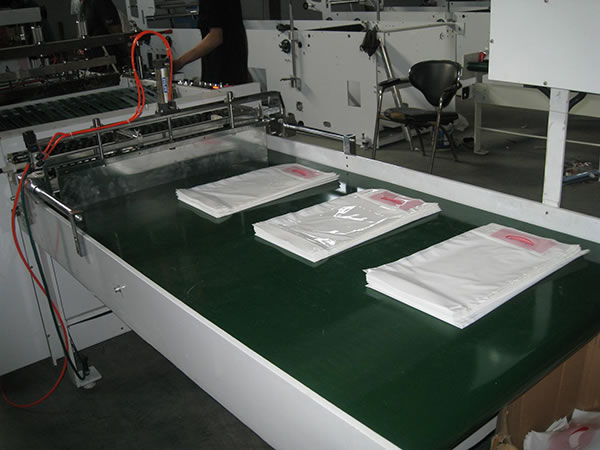

  • Auto conveyor table
Technical Parameters
Model CW-800NJT
Length of bag making 750mm
Width of bag making 600mm
Speed of bag making 80-130pcs/min
Line speed 60m/min
Bottom gusset 30-80mm
Width of patch film 145mm
Total power 16KW
Weight of machine 3500KG
Overall dimension 11000×1900×2600mm
Air compressor 6HP

Related names
Plastic bag making machine
Bag making machine

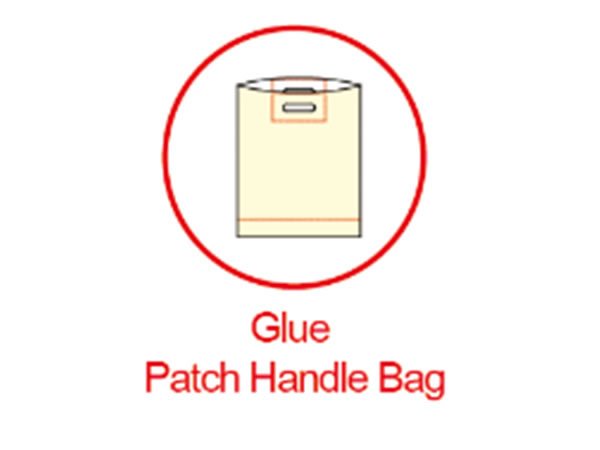

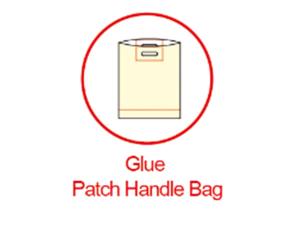

Glue patch handle bag making machine
Patch handle bag making machine
Plastic handle bag making machine
