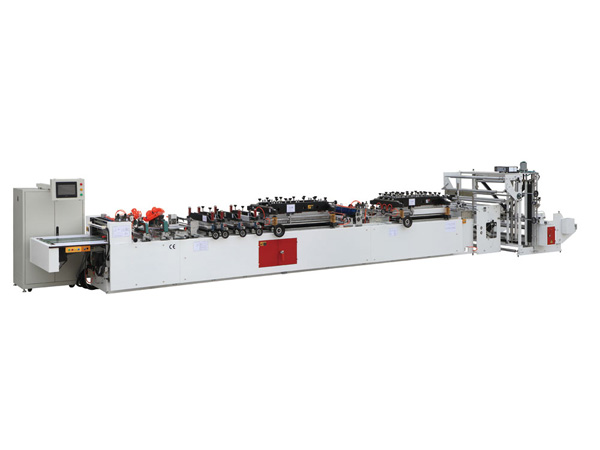

CWZD-400B+FS, CWZD-500B+FS, CWZD-600B+FS Side Seal Bag Making Machine

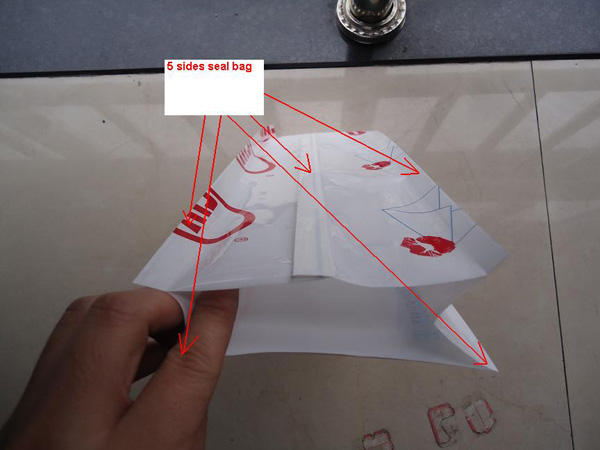

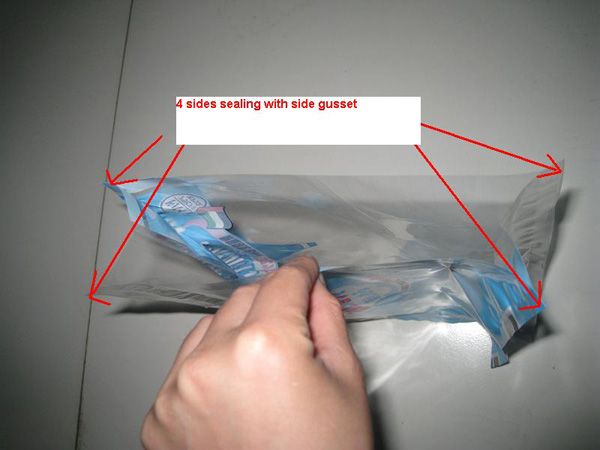

This range of side seal bag making machine, featuring heavy duty and multiple functions, is an economical type applicable to make various kinds of composite film into laminated bags. It is impossible for one unit to make all kinds of bags. Therefore, we produce laminated bag making equipment of different models for variable sorts of bags. This product is great for three side sealing bags and four side sealing bags. Also, it can be applied for making central sealing bag, central sealing bag with side gusset, as well as the unsealed bag. However, it is not recommended to equip this laminated bag making unit with zipper device or stand-up device. This laminated bag maker is available in varied dimensions in line with different sizes of the bags to be made.

Features
1. The multifunctional side seal bag making machine comes with 2 Japanese Yaskawa produced servo motors as well as driver system which is manipulated by PLC from Japanese Panasonic.
2. The touch screen is adopted for technical parameter display with automatic design.
3. The product chooses heavy duty bridge type heat sealing structure with high sealing intensity.
4. Its unwinding mechanism is equipped with EPC and double photocell tracking system to make the film to be unwound on the track. Furthermore, the unwinding operation is characterized by automatic tension control.
5. This laminated bag making machine possesses a 6 skip feeding device.
6. It owns an automatic waste film rewinding device.
7. The product can be optionally fitted with a double layer unwinding unit, an automatic pneumatic jumbo roll feeding equipment as well as handle punching device.

Note: Based on our consistent perfection of existing product as well as development of new functions, the appearance, performance characteristics as well as technical parameters may be altered without notice.
