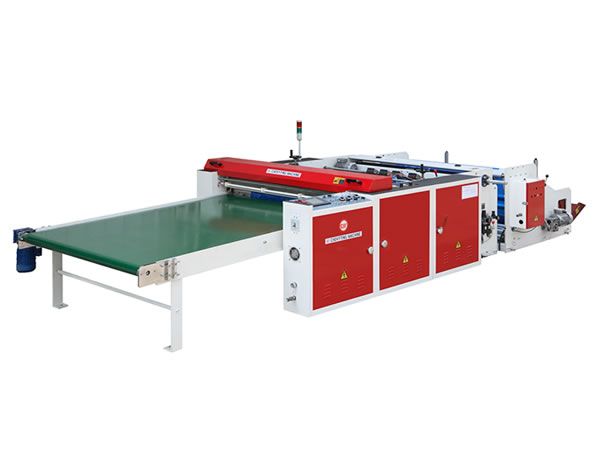

CW-1400FB High Speed Bottom Seal Bag Making Machine with Fly Knife System
Brief introduction
Heavy duty bottom seal bag making machine is specialized in producing bags with high thickness.
Feature
1. Newly-designed flying knife cutting system, easy to exchange the cutting blade (patent)
2. Double electric heating wire sealing design, sealing well for thick material (patent)
3. The entire stack, the entire output (patent)
4. Able to make multi-lane non-printed bag
Optional device
Hanger hole puncher device
V type sealing device
Surface friction unwinding device
Double servo feeding for producing double lane printed bag

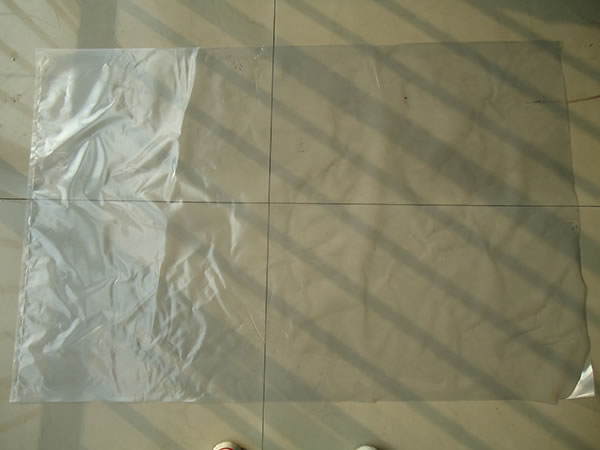

Flat bag

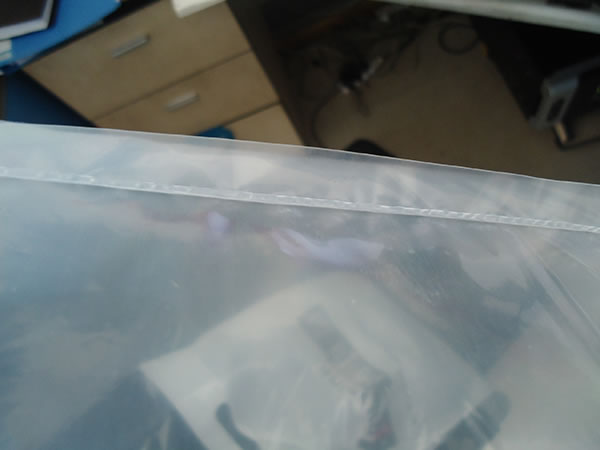

Sealing line

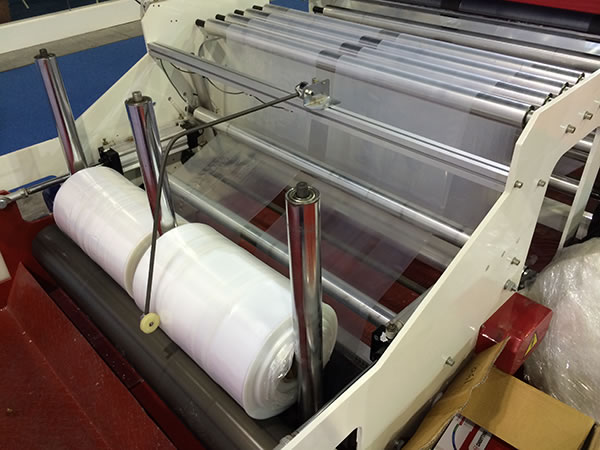

Unwinder
Conveyor table
Technical parameter
Type
CW-1000FB
CW-1200FB
CW-1400FB
CW-1600FB
Bag making length
200-3000mm
200-3000mm
200-3000mm
200-3000mm
Bag making width
900mm
1100mm
1300mm
1500mm
Mechanical speed
80pcs/min
80pcs/min
80pcs/min
70pcs/min
Film thickness (mm)
0.04×2-0.25×2
0.04×2-0.25×2
0.04×2-0.25×2
0.04×2-0.25×2
Total power
7.5KW
8KW
9KW
10KW
Machine weight
1800kg
2000kg
2100kg
2200kg
Machine dimension
6000X1800X1300mm
6000X2000X1300mm
6000X2200X1300mm
6000X2400X1300mm
Air compressor
6HP
6HP
6HP
6HP
