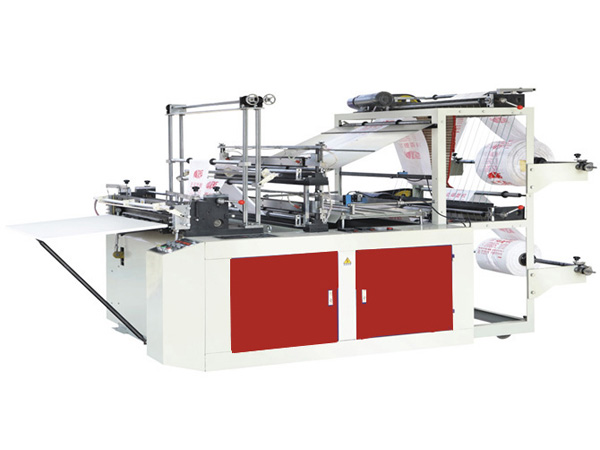

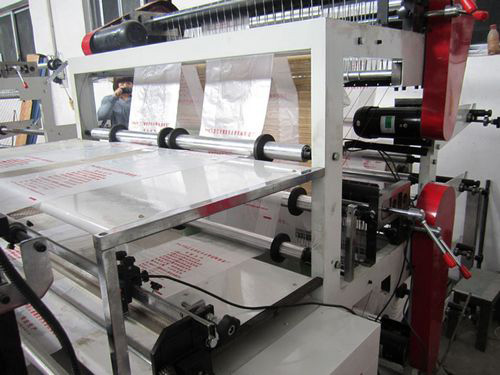

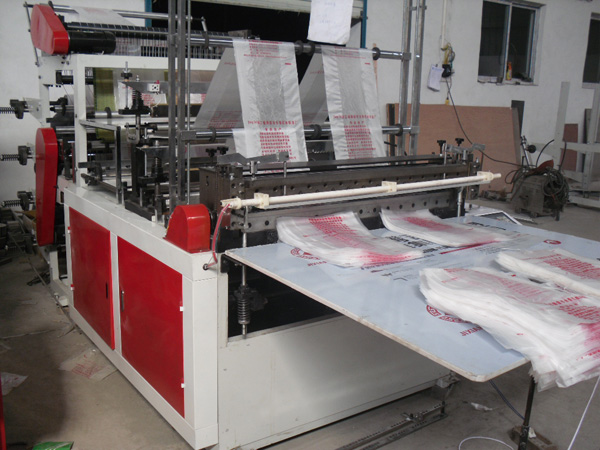

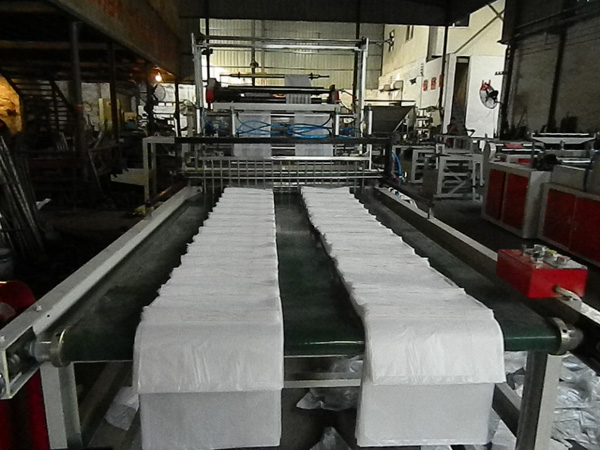

CP-400BSC-4L Garbage Bag Making Machine

Same as the CW-BSC model, this series of garbage bag making machine is available with heat sealing and cold cutting functions, and is great for making bottom sealing bags. It is a good choice for two layers and four lines of non-printed bags. Equipped with one stepper motor and a photocell, the product makes only one line of the printed bag.

Differentiating from the CW-BSC model, the bottom sealing bag making machinery can make two lines of large bags with one line for printing bags when the bag length is over 400mm. As the width is less than or equal to 400mm, it can produce 4 lines of small bags while only one line of bag can be printed. In comparison with the CW-BSC single line plastic bag makers, this product has significantly boosted the production capacity as well as working efficiency.

The maximum length of the bag is up to 1.2m. The garbage bag making machine is usually used to manufacture garbage bags which can be found in many markets. It can also be applied to make bags for packing clothes, shoes, gifts, etc.

Characteristics
1. The bottom sealing bag making equipment adopts one stepping motor to drag materials.
2. Its drive system supports the single chip control.
3. The product comes with the double digital display intelligent temperature controller. The solid relay is responsible for heating operations.
4. The plastic bag making unit makes use of a 1.5kW inverter which is introduced from Japanese Yaskawa.

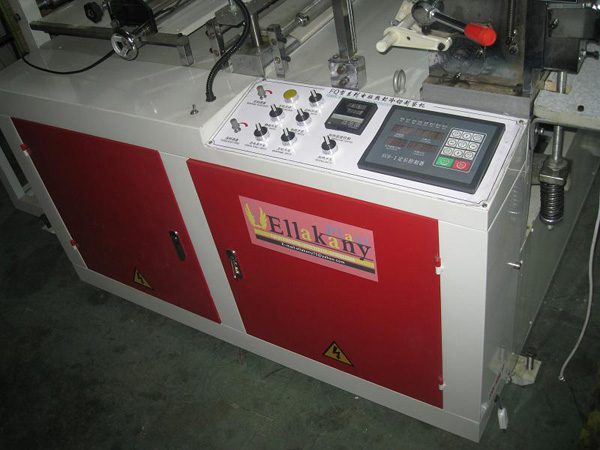

5. The total control panel of the whole product comes with a human machine interface with a Taiwan manufactured touch screen for real-time display.
6. This garbage bag making machine is designed with a C style channel steel welding frame.
7. The maximum single unwinding diameter is 500mm with the unwinding roller being air shaft.

Related Names
Bottom Sealing Bag Making Machine | Double Lane Bag Making Machine | Multi Functions Bag Making Machine
