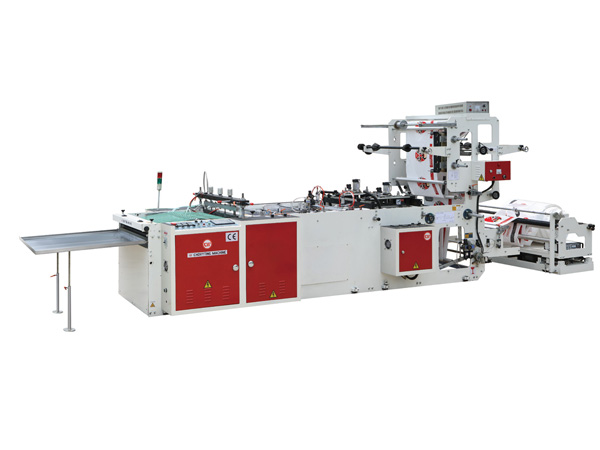

CW-800SBD DHL Multifunction Bag Making Machine

Features

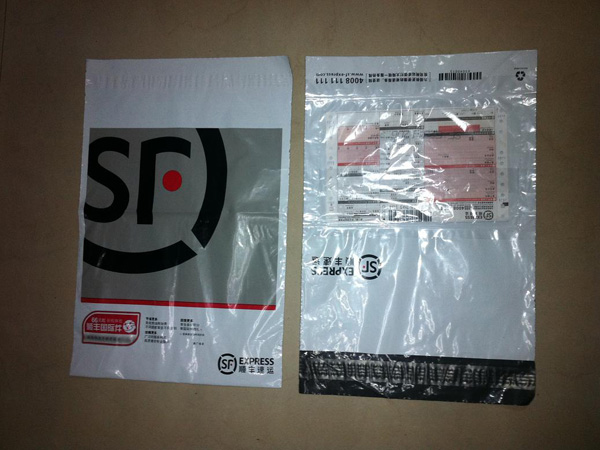

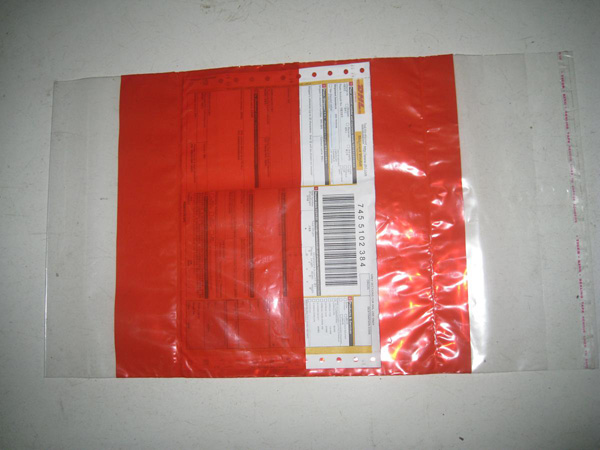

1. The multifunction bag making machine boasts heavy duty, multiple functions, high speed as well as great output. It is primarily used for mailing bag and postal bag making.
2. With an automatic design, the product is easy for operation.
3. The bag making equipment can be provided with different functions to produce different types of bags, such as PE top folding die cut bag, bottom sealing bag and double line sealing bag, as well as OPP header card bag, etc.

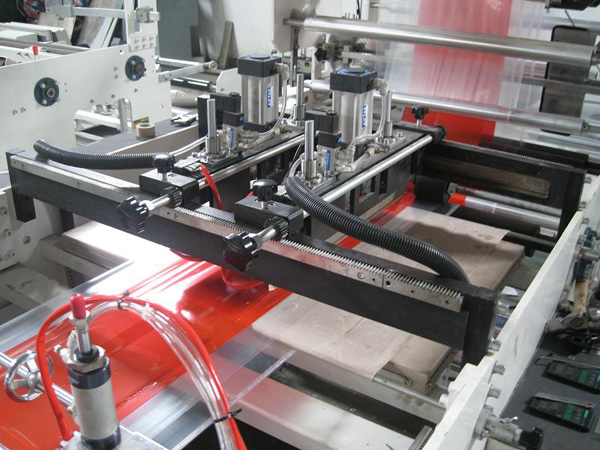

4. The bag making machine adopts the newly devised longitudinal sealing knife of DHL courier bag, circulation cooling device of side sealing knife plus top folding continuous bag mouth sealing device.
5. Additionally, the bag making unit can be optionally equipped with bottom sealing knife and double seal knife, the unit used for making anti-explosion edges for OPP bags, hot air sealing device especially for DHL bag, perforation line making knife, as well as double-faced adhesive equipment.

Technical Parameters
Model CW-800SBD+DHL
Bag Making Length (Height of Bag) 250 -750mm
Bag Making Width 250 -600mm
Bag Making Speed DHL Bag 70pcs/min
Die Cut Hand Bag 90pcs/min
OPP Bag 110pcs/min
Top Folding 50 -75mm
Bottom Gusset 20 -60mm
Total Power 10 kW
Equipment Weight 2300 kg
Equipment Dimension 6500× 1600×1870mm
Air Compression 5HP

Note: Owing to our consecutive perfection of existing equipment and development of new functions, the bag making unit may undergo a series of changes in terms of appearance, performance characteristics as well as technical parameters. Please understand if you are not given further notice.
