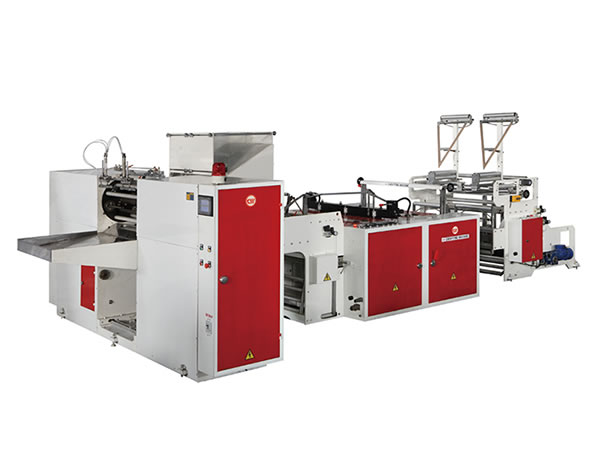

Features
1. The plastic bag roll making machine is fully automatic and the plastic bag rolls can be made with or without the core.
2. The product can also be used to manufacture garbage bag, vegetable bag, table cloth, etc.
3. The automatic roll changing system can save a lot of labor force during mass production.
4. The plastic bag making machine is simultaneously driven by four excellent servo motors with better speed and stability. It is an optimum choice for mass production of printed bags as well as blank bags.
5. The plastic bag maker has long sealing time while requiring low temperature so that seals can not be destroyed and the bag can be high quality guaranteed. Additionally, the sealing system can continuously feed materials using the swinging principle. This design has gained relevant patent.
6. The dot breaking part and seal of the bag on roll are at the same position. There is no tension and this design has won corresponding patent.
7. The bag roll making machine is newly designed with the function of automatic conveying, positioning and changing of paper cylinders.
8. It can be optionally provided with a series of accessories including automatic paper label sticking equipment, double line sealing knife as well as folding equipment.

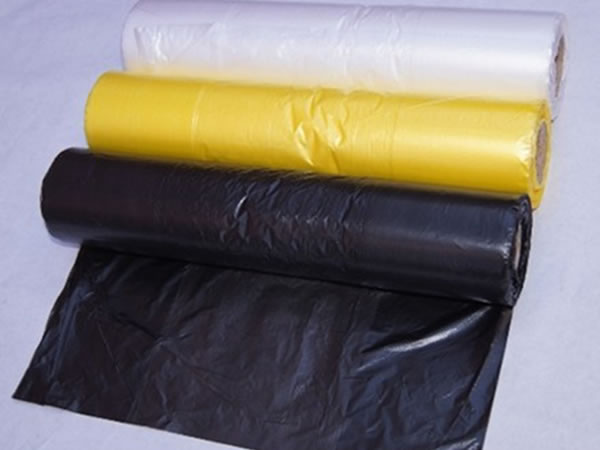

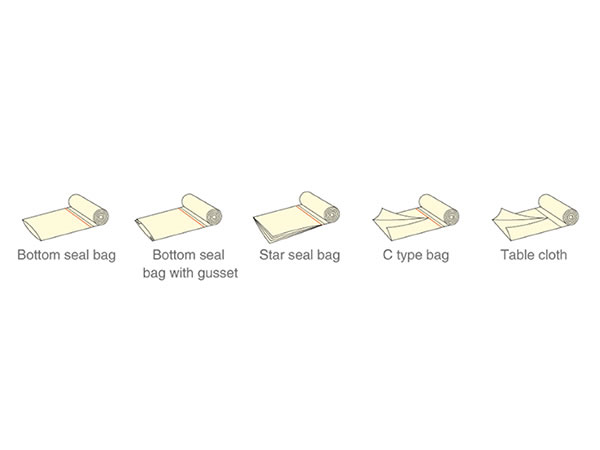

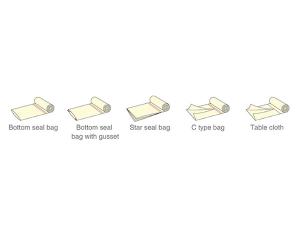

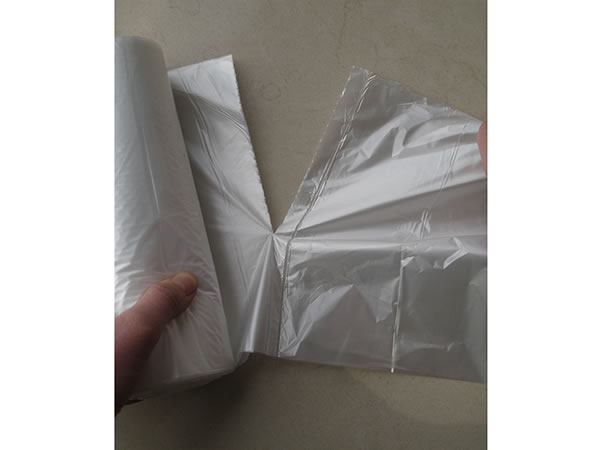

Flat bag on roll

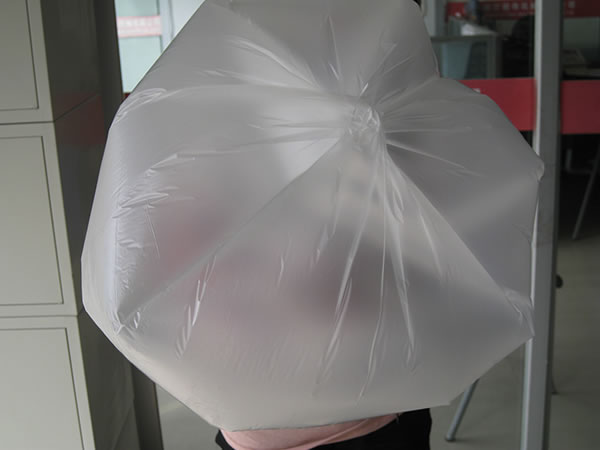

Star bottom bag on roll
Flat bag on roll
Soft loop handle bag

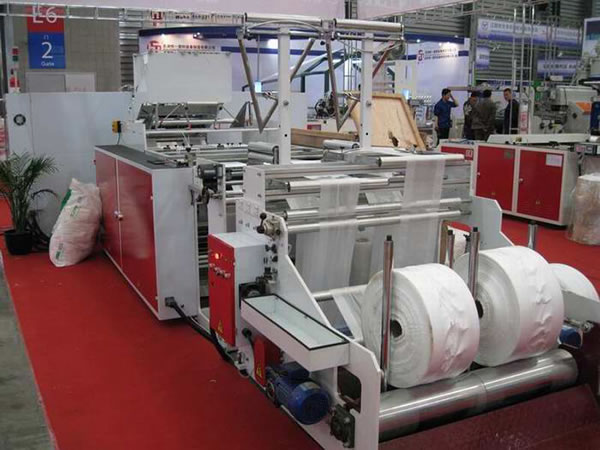

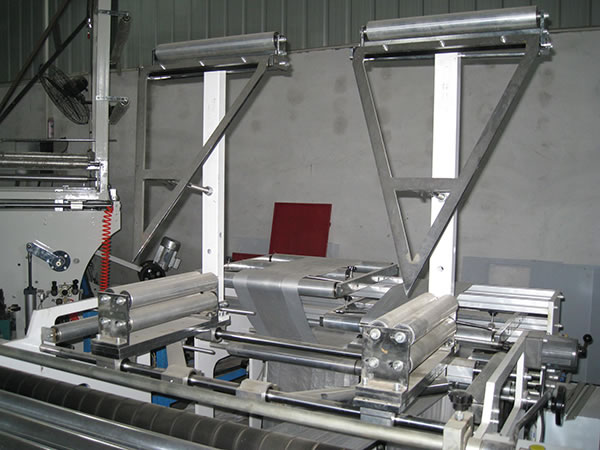

Unwinder

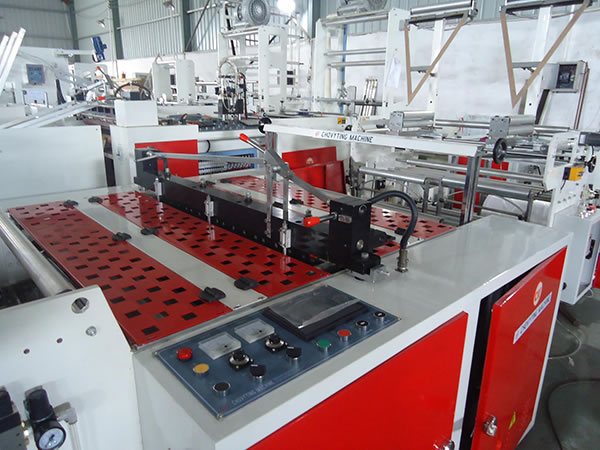

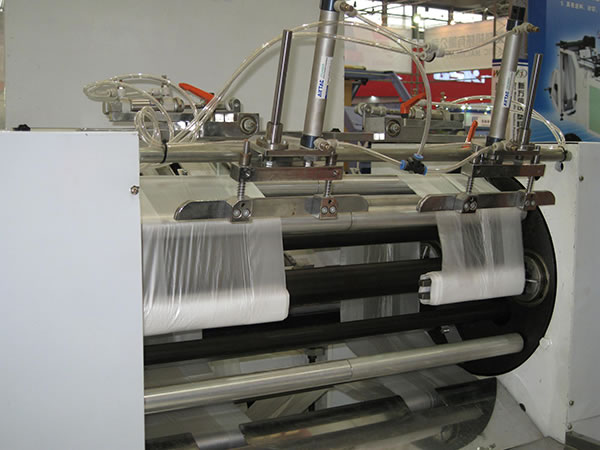

Continuous sealing device
Unwinder
Continuous sealing device
Technical Parameters
Model
CW-1000 PR+C2
Unwinding Width
900mm (single line)
400mm ×2 (double lines)
Max. Unwinding Diameter
Φ 800mm
Bag Making Length
150-2000mm
Bag Making Speed
230pcs/min
Line Speed
with core: 80m /min
without core:110m /min
Rewinding Width
with core: 600mm (single line)
300mm ×2 (double lines)
without core: 600mm (single line)
280mm ×2 (double lines)
Max. Rewinding Diameter
with core -Φ160mm
without core-Φ160mm
Max. Finished Roll Changing Times
6 rolls /min
Film Thickness
0.02-0.15mm
Total Power
about 21kW
Overall Dimension
6500×3250×1900mm
Weight
2800kg
Air Compression
6HP (with air compressor not included)
Note: On the basis of our constant perfection of existing products and development of new functions, the appearance, performance properties as well as technical parameters may vary without further notice.
