CWZD-C+CS Series Heavy Duty Multifunction Laminated Doypack Bag Making Machine

Brief introduction
Heavy duty laminated bag making machine is used for producing various kinds of laminated soft package bag. It can also make center sealing bag, three side sealing bag and stand up zipper bag (doypack).

Features of the laminated doypack bag making machine
1. It is multi-function machine, to make zipper stand up bags (doypack), 3 side sealing bag and center sealing bag.
2. Large human-computer interface screen control, automatic design and PLC control.
3. Heavy-duty heat sealing structure will get stronger sealing.
4. It has EPC and double photocell tracking for unwinding. 5. Unwinding with automatic tension control

1. Double layer unwinder device
2. Punching device for handle

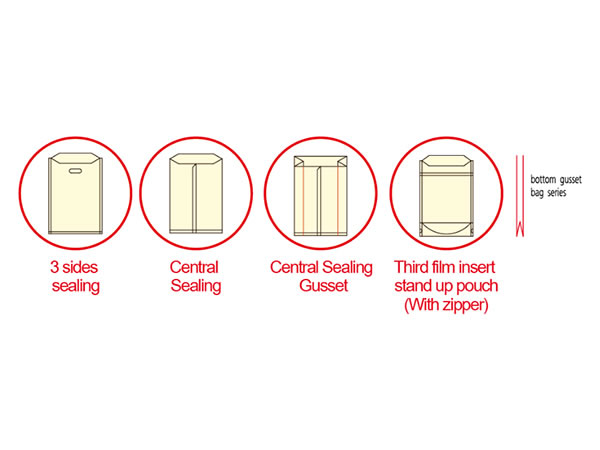

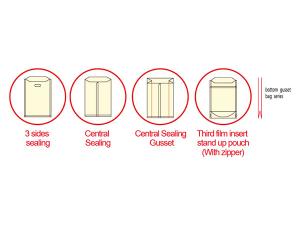

Bag samples :

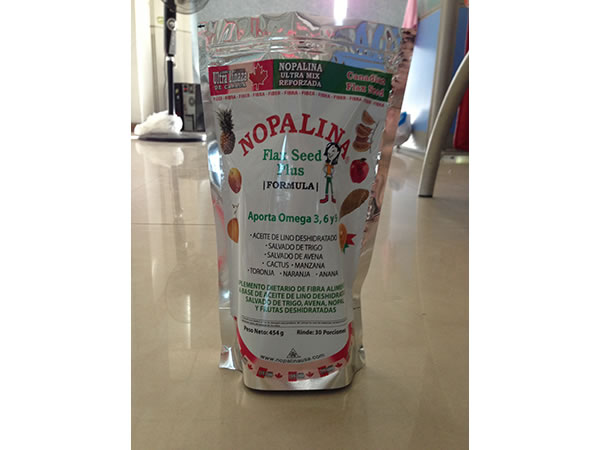

  • Bag sample stand up bag
  • Bag sample center seal bag

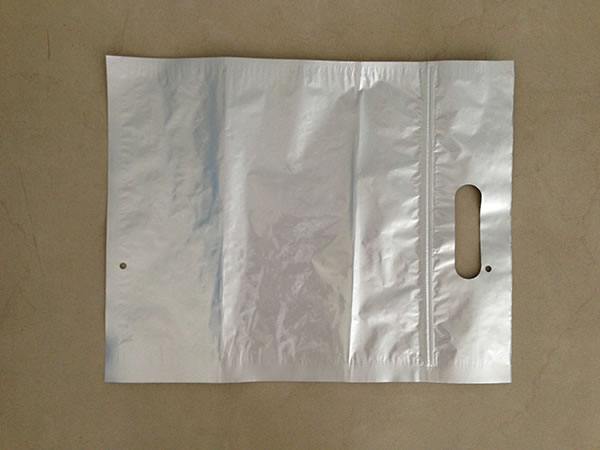

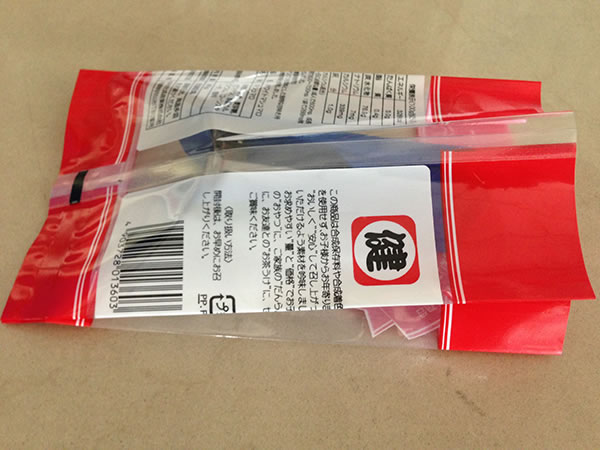

  • Bag sample three side seal with zipper bag

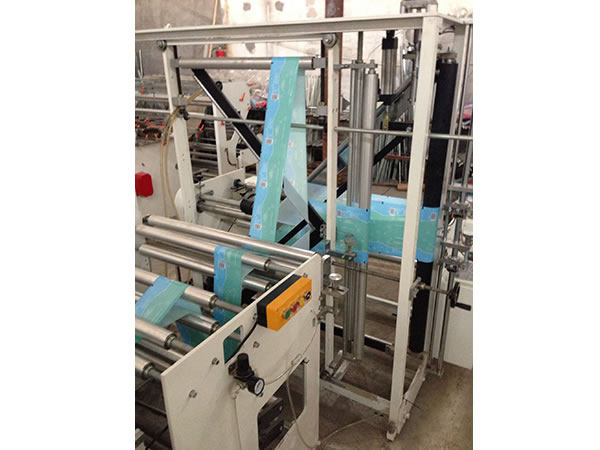

  • Unwinder
  • Unwinder

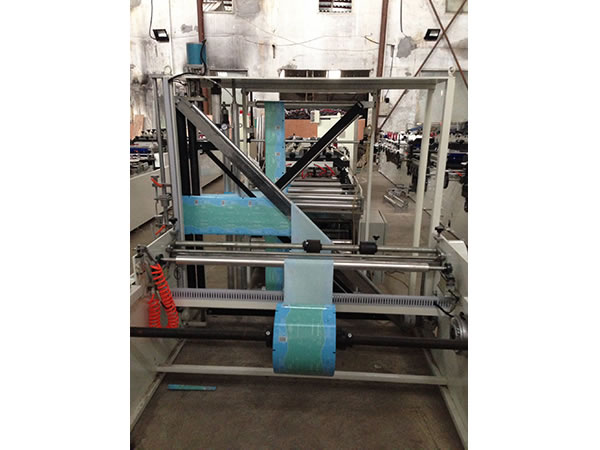

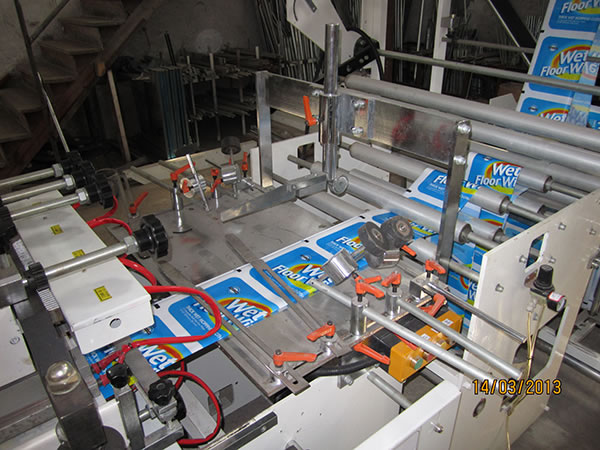

  • Center folding section

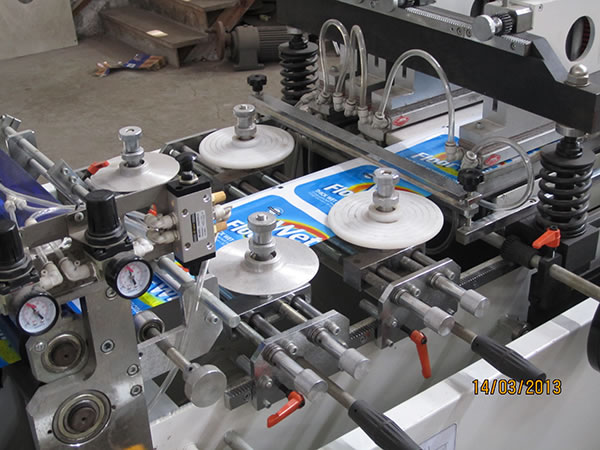

  • Side gusset part

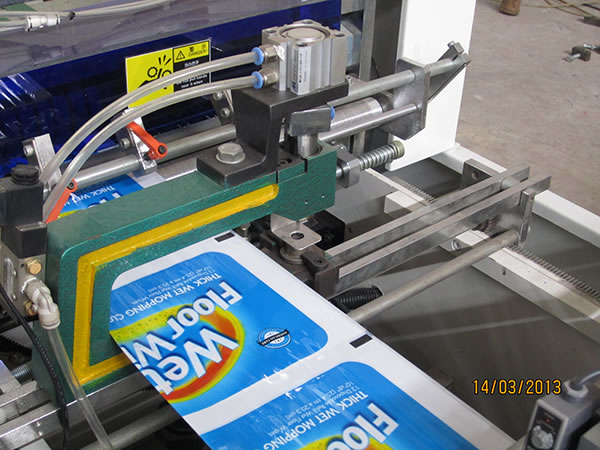

  • Notch puncher

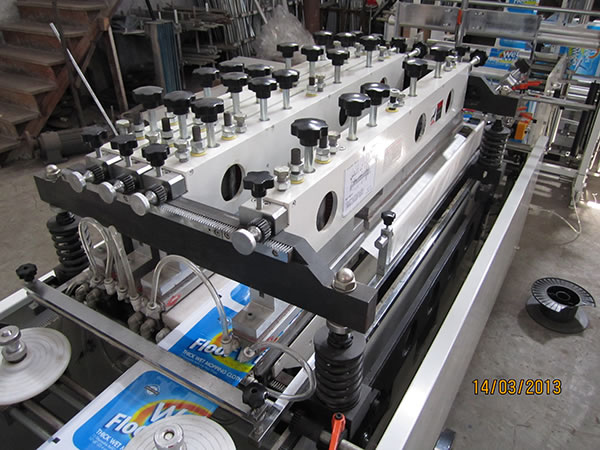

  • Vertical sealing section

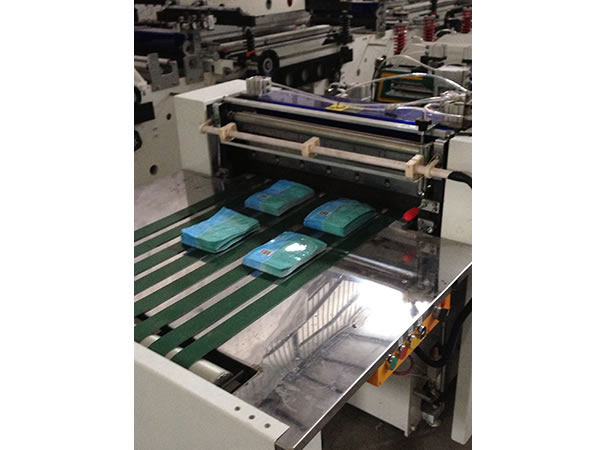

  • Automatic Conveyor Table

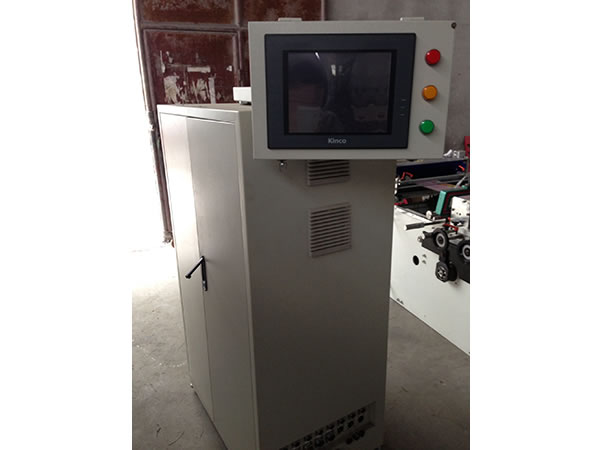

  • Control panel and cabinet
Technical parameters of the laminated doypack bag making machine
Width of unwind before fold 800mm 1000mm 1200mm
Pouch-making length 70-380mm ×N (N≤6) 70-380mm×N (N≤6) 70-380mm×N (N≤6)
Pouch-making width 70-380mm 70-480mm 70-580mm
Capacity 40-150pcs/min 40-150pcs/min 40-150pcs/min
Set film dragging speed 35m/min 35m/min 30m/min
Total power 30kw 35kw 40kw
Weight of machine 3700kg 3900kg 4200kg
Overall dimension 9000*1750*1800mm 9000*1950*1900mm 9000*2050*2000mm
