CW-1000PG+OR Automatic Bags on Roll Making Machine (Bags with Ribbon)

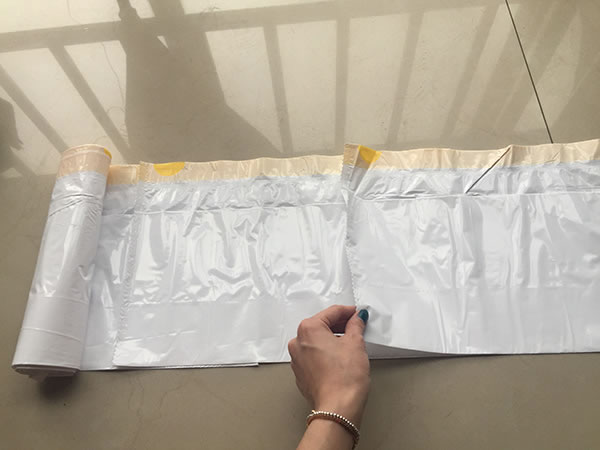

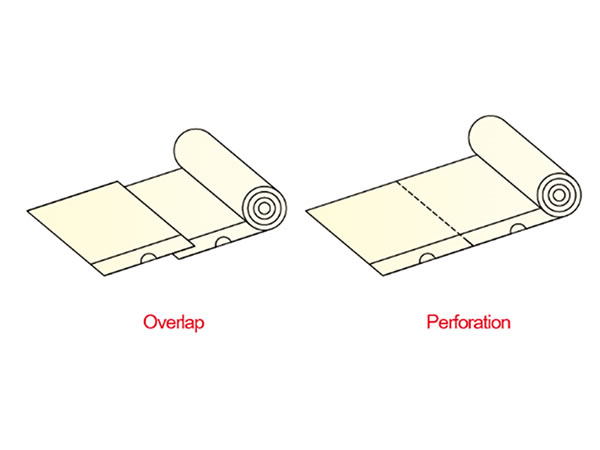

1. This machine is to make both overlap and perforation rolling bag.
2. Rewinder with 4 servo motor control
3. Chovyting is the only one manufacturer for this equipment in China.

Optional equipment
1. Bottom sealing knife

Technical parameter
Model CW-1000PG+OR
Length of bag making 500-900mm
Width of bag making 400-1000mm
Speed of bag making 100pcs/min
Line speed 60m/min
Unwinder width 1000mm
Unwinder diameter 900mm (max.)
Rewinder width 300mm
Rewinder max. diameter 130mm (max.)
Finished roll exchange times 7 rolls/min
Film thickness 0.025-0.06mm
Total power 21kw
Weight of machine 4500kg
Overall dimension 15000x2800x3000mm
Air compressor 7.5HP

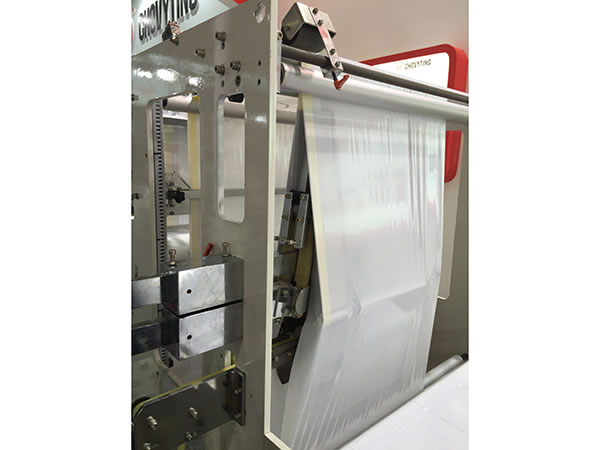

Picture about Details:

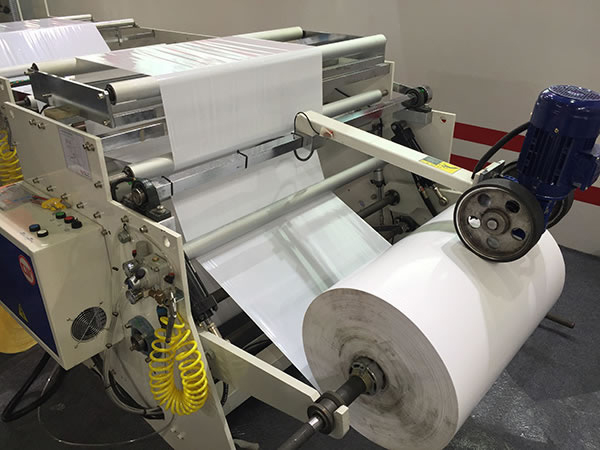

  • Unwinding unit

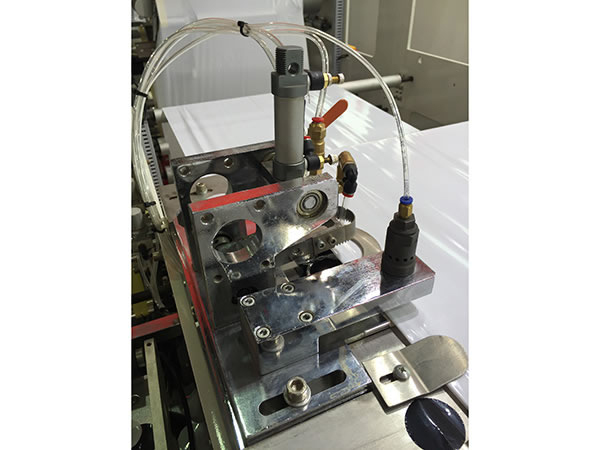

  • punching unit

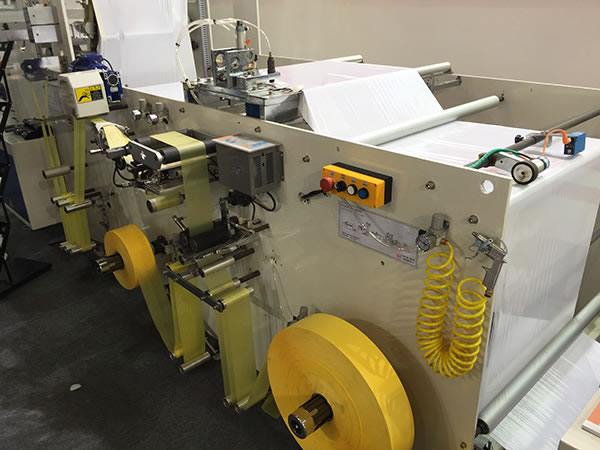

  • Draw tape insertion unit
  • Hot air sealing unit
  • Rear part of entire machine

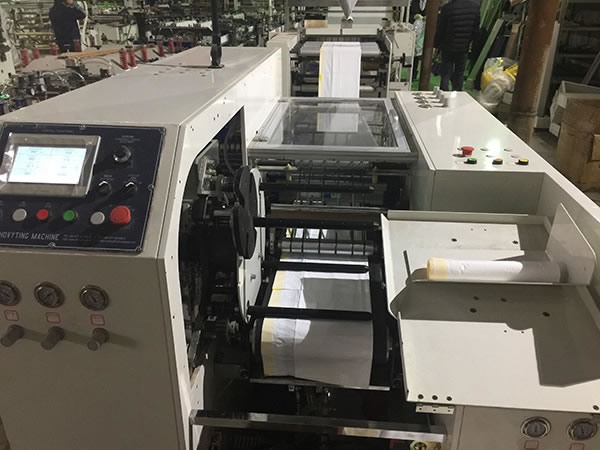

  • Rewinding unit
